SINGLE SIDE EDGE BANDER - BATCH ONE

HOMAG TBR 100 + KAR 350 + TFU 200

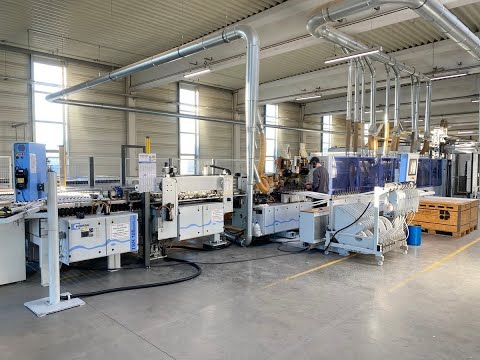

FLEXIBLE SYSTEM OF SINGLE-SIDE EDGEBANDING (BATCH ONE)
Composed of the following machines:

M.01) PANELS HANDLING and RETURN SYSTEM Mod. PROFI TBR100/20/30/F

M.02) SINGLE-SIDE EDGE BANDER (RIGHT-HAND machine)"HOMAG" Mod. Profi KAR350/12/A
Panels thickness (min/max) mm 8 / 60 - Working width (min/max) mm 200 / 1200

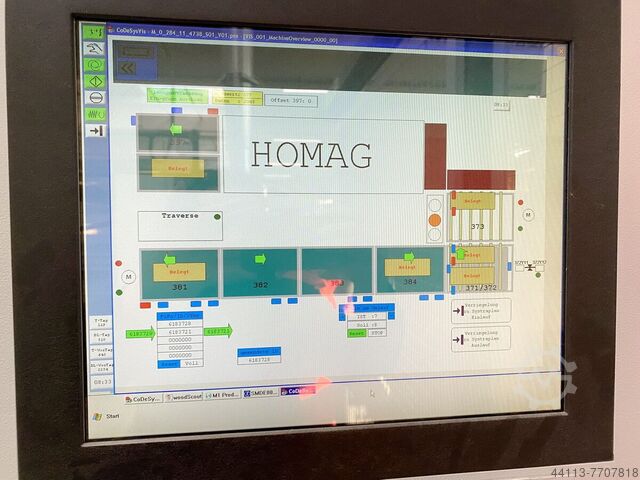

Numerical Control / Software PC 22
Adjustable feeding speed (m/min ) 18 - 32
Panels in-feed system WZ 14/30
Pre-milling Unit (vertical joint trimmers) adjustable by N.C. (2 x Kw 3)
DOUBLE Glueing Unit (P.U.R. Glue + Quick Melt unit) 2 x PU 34
Pressure zone (N.C. adjustment) - Edge coils supporting unit (No. 12 reels)
Snipping (end-cutting) unit WK13
Rough Trimming unit (2 x Kw 055)
Fine Trimming unit (Multi-profile, adjustable by N.C.) MF 21 (2 x Kw 0,55)
Corner Rounding unit (Contour Trimming) FF 32 (4 x Kw 0,4)
Multi-Profile Copying unit adjustable by N.C.(fine and contour trimming) FK 31 (30 m/min)
recently added (in a technological "revamping" operation)
Profile Scraping unit (Multi-profile, adjustable by N.C.) MN 21 (servo)
Finish processing unit (Glue scraper + Buffing unit) FA 11
Jumping Milling grooving unit UF 11 (1 x Kw 4)
Hjdpfoinigmox Ancjfn

M.03 ) PORTAL BRIDGE (UNLOADING/LOADING) "BARGSTEDT" Model. TFU200/L/30/12/S
