Screw Compressor LUFT + air dryer + tank

CORMAK LUFT 1500 INVERTER + N20S + BUTLA 500L

Set including LUFT 1500 Inverter Screw Compressor, 500L Vertical Air Receiver with Accessories, and IZBERG N20S Dryer

The LUFT 1500 screw compressor with inverter, combined with a 500-liter vertical compressed air tank equipped with fittings and the IZBERG N20S dryer, represents a comprehensive, high-performance pneumatic solution.

The LUFT series screw compressor by the Polish brand Cormak features state-of-the-art technology, top-quality materials, and reliable components. Its low operating costs, easy maintenance, ergonomic and robust construction, and high efficiency ensure dependable, trouble-free operation in demanding environments.

Technical Specifications – LUFT 1500 with Inverter

Motor Power: 11 kW

Voltage: 400V / 50Hz

Output at 0–6 bar: 1620 L/min

Output at 6 bar: 1580 L/min

Gujdpfxjxnyfms Aggeh
Output at 8 bar: 1350 L/min

Output at 10 bar: 1230 L/min

Outlet Connection (G): 1"

Dimensions: 1170 × 730 × 1020 mm

Weight: 243 kg


Technical Specifications – IZBERG N20S Dryer

Inlet/Outlet Pipe Diameter (BSP): 1"

Maximum Operating Pressure: 10 bar

Maximum Inlet Air Temperature: ≤ 38°C

Dew Point Temperature: 3°C

Capacity: 2800 L/min

Power Consumption: 0.58 kW

Power Supply: 230V

Dimensions (L × W × H): 420 × 700 × 690 mm

Weight: 37 kg

Refrigerant Type and Quantity: R134a, 550 g

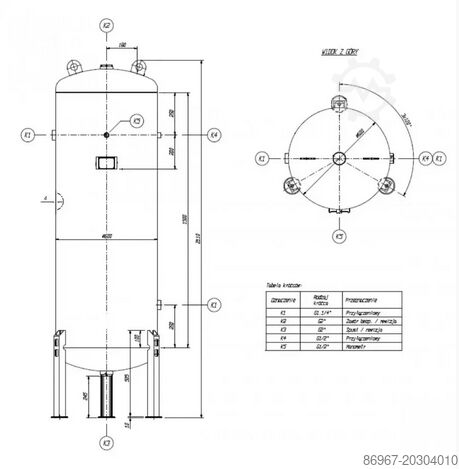

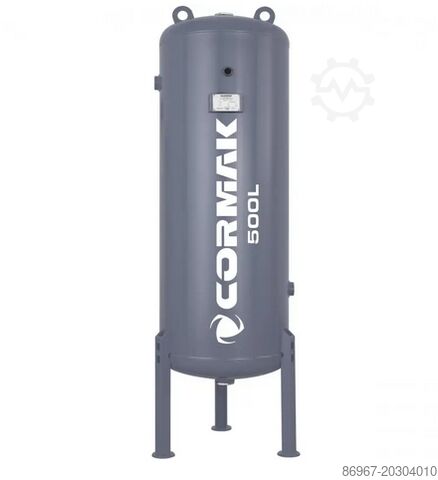

Technical Specifications – 500L Vertical Air Receiver

Tank Capacity: 500 liters

Working Pressure: 11 bar

Wall Thickness: 4 mm

Diameter: Ø 600 mm

Height: 2098 mm

Weight: 145 kg

Connections: 6

Connection Sizes: 1 1/4", 2", 1/2"
