2017 Scm Accord 25 FX

Scm Accord 25 FX

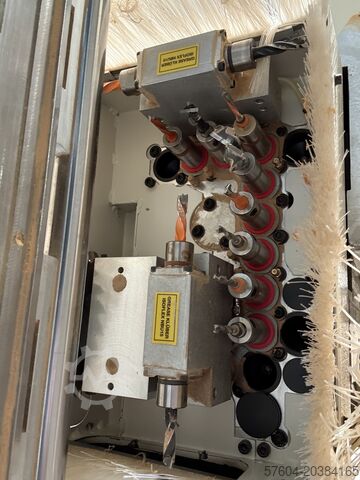

Xilog Maestro Numerical Control Tecpad mobile console Working range on X axis mm 3680 Working range on Y axis mm 1380 Working range on Z axis 250 mm N ° 2 work fields Bar worktop No. 6 adjustable bars of 1300 mm. Start Terminal arrangement N° 4 pneumatic Bakelite bars for lifting the panel No. 3 adjustable suction cups with line laser for the virtual 0 position in the Y direction No. 1 Prisma KS 5-axis vertical electrospindle with automatic tool change, 12 kW, 24,000 rpm, HSK 63F, rotation right and left Automatic tool change system with 10 positions, positioned on the front of the machine, HSK type cones Automatic tool change system with 16 positions, positioned on the back of the machine, HSK type cones F 12L drilling head with spindles arranged as follows: - No. 8 verticals on X and Y axis - N° 2 horizontal on X axis - N° 2 horizontal in Y axis No. 1 blade group for making grooves Pro-Speed Safety System Front bumper protection and safety system Automatic lubrication system 250 m3 vacuum pump
