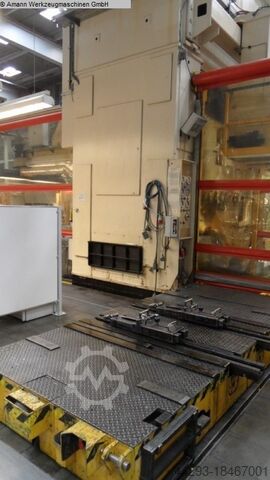

Double Column Drawing Press -Hydr.

MÜLLER ZE 600 25.4.3

pressure 600 t
distance between columns 2600 mm
stroke 900 mm
distance table/blankh.,max. stroke up,adjustm. up 1600 mm
table surface area 2500 x 1730 mm
die-cushion pressure inside the table 250 t
stroke of drawing cushion in table 400 mm
die-cushion pressure in pusher 63 t
stroke of drawing cushion in pusher 150 mm
ram surface 2500 x 1730 mm
column travel -side 1100 mm
die-cushion inside the table hydraulic, controlled
die-cushion in pusher hydraulic, controlled
overhauled in 2005
