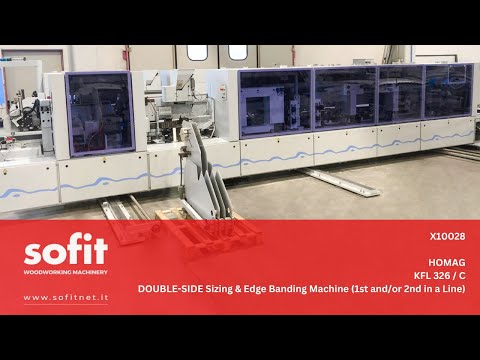

Double-side Sizing-Edge Banding machine

HOMAG KFL 326/C

Double side - Independent Machine (or 1st and/or 2nd in a line)
Edges (tape) thickness in rolls (min/max) mm 0,6 - 3
Panels thickness (min/max) mm 8 - 60 / Working width (min/max) mm 225 - 3000
Numerical Control Power Control PC 22 /Software: Wood Commander
Adjustable feeding speed (m/min ) 15 - 32
Distance (center-axes) of the Disappearing Dogs (mm) 400

Rodpfx Abop N D Ngonsch
SIZING PART (for each side):
Anti-chipping Milling Unit 1 x Kw 4,5 / Hogging Units KD 11 (2 x Kw 6,6)

EDGE-BANDING PART (for each side):
Glueing Unit (Hot Melt + Quick Melt Unit) A3 + SERVO
Band Pressure zone "A"
Edge coils supporting unit (No. 2 reels)
Snipping (end-cutting) unit HL 84 (2 x Kw 0,22)
Rough Trimming unit (2 x Kw 0,55)
Fine Trimming unit 2 x Kw 0,4
Corner Rounding unit (Contour Trimming) FF 12 (4 x Kw 0,4)

LEFT SIDE: 2 x Jumping Milling Unit (for grooving) UF11 (Kw 4 x 2) 0°-90°
RIGHT SIDE: 1 x Jumping Milling Unit (for grooving) UF11 (Kw 4 x 1) 0°-90°

Profile edge scraping unit PN10 (PNEU)
Finish processing unit (Glue scraper + Buffing unit) FA 11
