Radial circular saw

Holzkraft SR 900

New machine, year of manufacture 2022

Suitable for large cutting lengths, e.g., in kitchen construction or for floorboards
Compact footprint and highly versatile applications
Quick conversion between double mitre cuts and cross-cutting

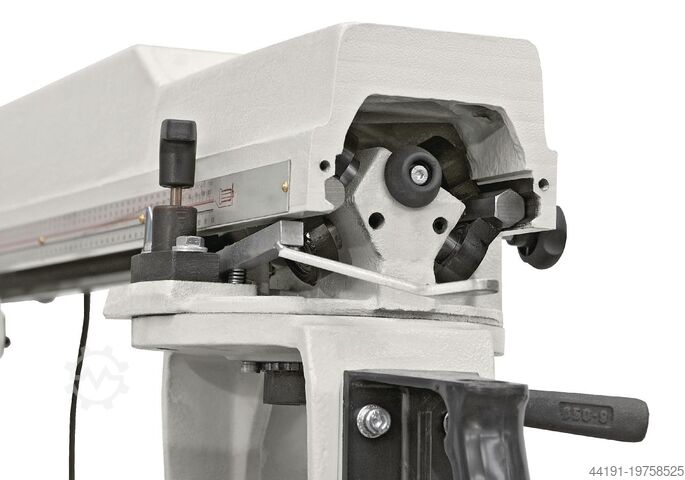

Robust cast iron pivoting arm with replaceable hexagonal guides
Movable saw unit with return spring, eightfold bearing for precise cuts
Saw unit swivels 45 degrees to both sides
Motor equipped with mechanical brake
Aluminium stop as standard
Roller conveyors, one meter long each, available as optional accessories for both sides

Technical Data
Dimensions and Weight:
Length approx. 2110 mm
Width/Depth approx. 1580 mm
Height approx. 1500 mm
Weight (net) approx. 300 kg
Extraction port connection:
Saw blade guard extraction port Ø 60 mm

Electrical Data:
Rated voltage 400 V, frequency 50 Hz
Motor drive power 4 kW

Sliding Table and Work Table:
Table length 2060 mm
Table width 1320 mm

Noise Emission:
Credpfsw I Uq Sjx Aggjh
Sound pressure level 84 dB(A)
Sound power level 100 dB(A)

Circular Saw Unit:
Saw blade tilt -45° to 45°
Pivot angle of saw arm -45° to 45°
Max. cutting height 45°: 570 x 120 mm
Max. cutting height -45°: 470 x 120 mm
Max. cross section: 900 x 20 / 855 x 80 mm
Max. cutting height 0°/45°: 120 / 83 mm
Saw blade diameter: 400 mm
Saw blade bore diameter: 30 mm
Saw blade speed: 2800 rpm

Location: Solingen
Availability: Upon agreement
