2008 Zoller Venturion 800

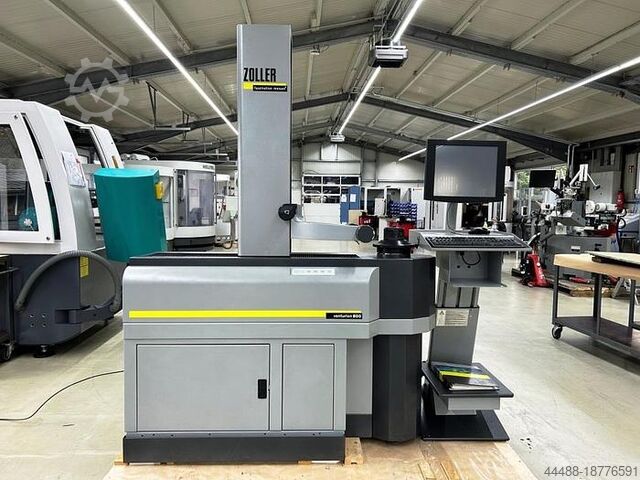

Zoller Venturion 800

Suitable for measuring and presetting all types of cutting tools as well as for measuring grinding wheel packages. The extensive and comprehensive software solution with intuitive graphical user guidance guides users quickly and safely to precise measurement results.

Accessories:

Upgrade to ZOLLER measuring device control »pilot 4.0« with 17” monitor,

Autofocus/venturion 800,

Rotary encoder (ROD=) for high-precision position determination,

Tool inspection (incident image processing with centered LED lighting),

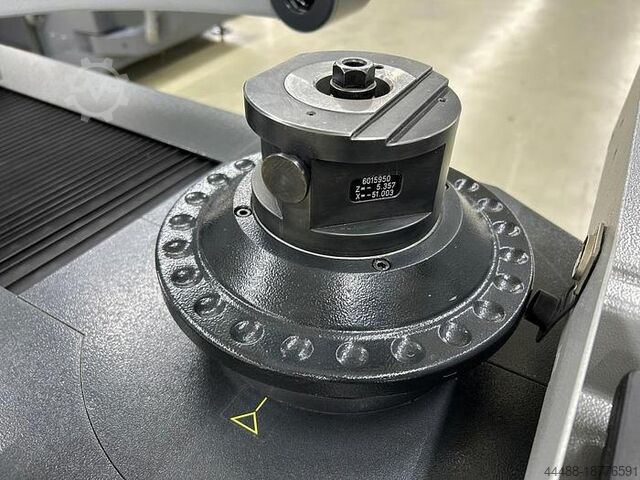

High-precision spindle “ACE” concentricity 0.002 mm,

Tool management standard,

FORED 'manual measuring programs,

Bwedpfxev Sauto Af Dsi
3 used attachment holders.
Z-axis travel: 800 mm
X axis travel: 200 mm
Workpiece diameter: Max. 1000 mm
workpiece length: Max. 800 mm
Max. snap gauge diameter: d = 200mm
Workpiece holder: SK 50
Tool weight: max. 10 kg
Repeatability: +/- 0.002 mm,
Display accuracy: 0.001 mm
Concentricity: 0,005 mm
Connected load: 230 V / 50 Hz
Compressed air connection: approx. 6 bar
Dimensions W x D x H: 1550 x 800 x 2200 mm plus control panel
mass: about 600 kg
colour: silver grey / anthracite
