Band saw

Wood-Mizer WM4000

Sawmill line operated for one year, completely newly built. 6,000 motor hours.

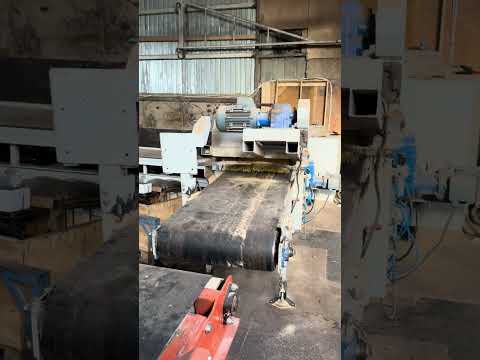

The fully equipped sawmill line consists of:
- Outdoor log loading ramp
Nsdsxrnwfopfx Advown
- Log infeed conveyor
- Log loading mechanism onto the saw
- Wood-Mizer WM4000 band saw
- Dust extraction bracket
- Operator console with touchscreen and joysticks
- Heated operator cabin
- Chip extraction system
- Board outfeed mechanism with chip brushes
- Outfeed cross conveyor

Purchase of individual components is possible.

Everything is connected and ready for testing.

Band saw specifications:
Power: 22 kW Electric
Max. diameter: 100 cm
Max. cutting width: 86 cm
Max. cant width: 78.5 cm
Height above cutting tool: 33 cm
Max. clamping width: 66 cm
Min. clamping width: 5 cm
Setworks electronic ruler with touchscreen
Head height adjustment: Electric
Head feed forward/reverse: Electric
Cutting width adjustment: Electric
Blade lubrication system: Automatic
Blade tensioning system: Pneumatic
Sawdust extractor port diameter: 150 mm
Laser sight
Roller, double block blade guide
Pantograph
Board return supports
Blade:
Length: 5,000 mm
Width: 38 mm
Flywheel:
Diameter: 635 mm
Type: Belt-driven
Material: Cast steel
Frame design: Single rail
Operator’s station
