WACO HM200 UNIVERSAL, 10 spindles

Waco HM Universal 200

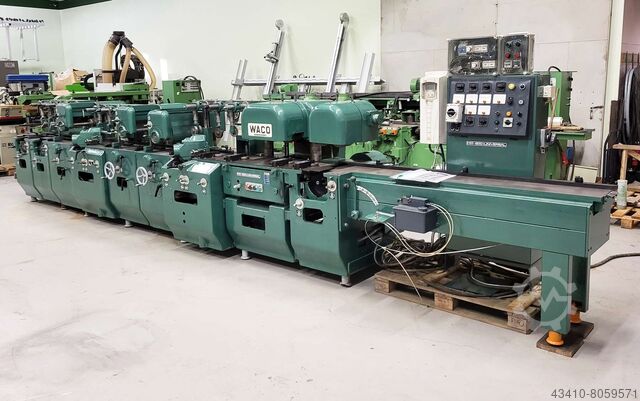

WACO HM200 UNIVERSAL, Planer-Moulder 10 spindle machine
Year 9/1979
S/N 31469.708

Hydraulic feeded powerful spindle moulder.

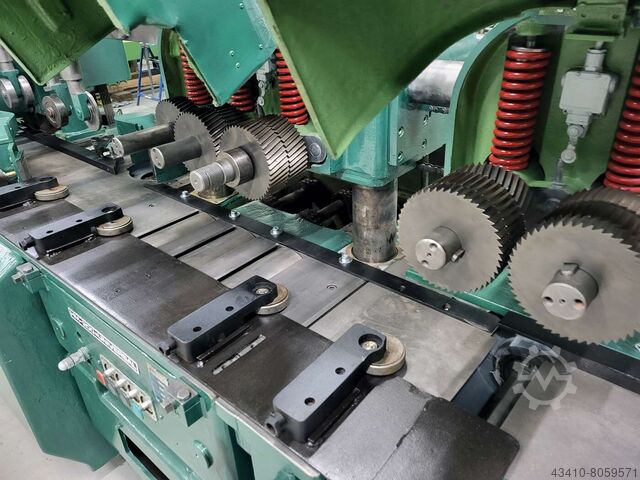

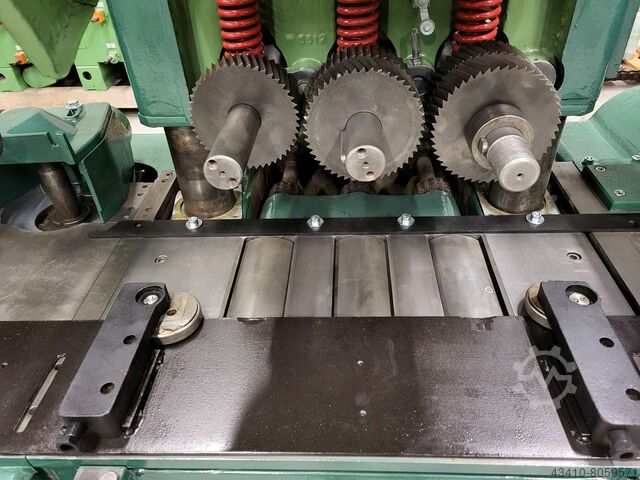

Feeding speed 0-50m/ min

counter bearings on all horizontal spindles.
1. / 5. / 8./10. spindles equipped with jointer

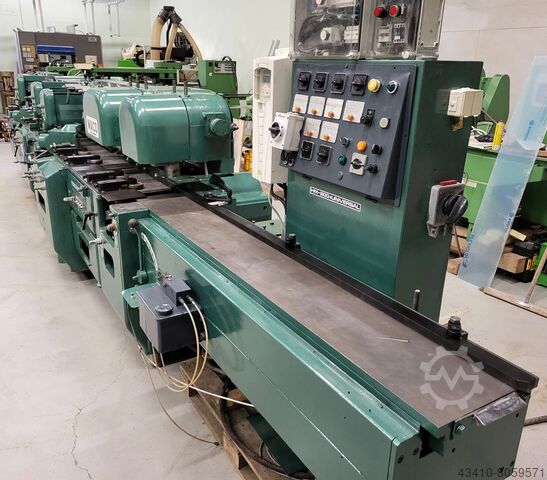

Infeeding table 200 cm
Dsdsiz Tzxspfx Ag Iowf

Technical describtion:
working capacity 200x100mm (width x hight)

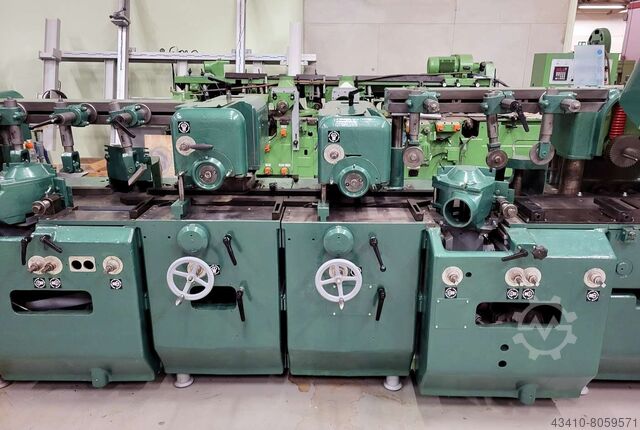

Spindle configuration:
1. Spindle Bottom 7,5Kw (10Hp)
2. Spindle Right 7,5kw (10HP)
3. Spindle Left kw (15HP)
4. Spindle Top, 7,5kW
5. Spindle Top, 7,5 kW
6. Spindle Right 7,5kw (10HP)
7. Spindle Left kw (15HP)
8. Spindle Top, 7,5 kW
9. Spindel Bottom, 7,5 kW
10.Spindle Bottom 10 kW


Bottom spindle max tool diameter 160mm, work length 210mm
Side spindles (right / left) max tool diameter 200mm, work length 110mm
Top spindles max tool diameter 225mm, work length 210mm

Spindle diameter 45mm
Pneumatic pressure rolls ??

L x W x H =
Weight 10 t
