Combined machine

Steko 228 P.B.S. Pressen - Schleifen - Sägen

No. 04493

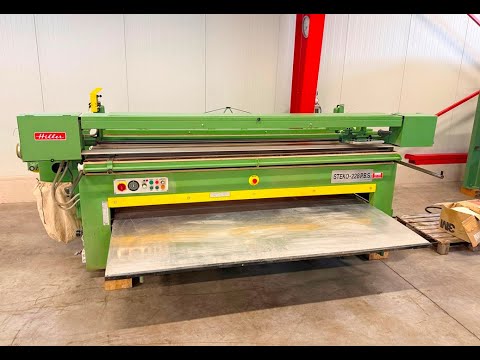

Combined machine Steko 228 P.B.S. Pressing - Sanding - Sawing

Used

- Pneumatic veneer press with electric heating
Aluminium heating plates 2280 x 1000 mm LW
Lower plate extendable
Opening width approx. 145 mm
Total pressing pressure 40 tons, specific pressing pressure max. 2 kg/cm2
Heating 2x 1,8 kW

- Long belt sander
3 kW
Table 2600 x 750 mm LW, extendable
Sanding height 200 mm
Belt length 6800 mm
Belt width 120 - 150 mm
Left/right rotation, speed 19 m/s

- Sliding table saw / veneer saw / edging saw
2.2 kW
With pneumatic pressure beam
Cutting length approx. 2600 mm, cutting height adjustable 0 - 60 mm
Saw blade diameter max. 250 mm
With chain feed

- Extraction for sander and saw
0.55 kW
Delivery rate approx. 11 m3/min

Push-button control with main and emergency stop switches
Machine on trolley
Installation footprint according to manufacturer 7.5 m2

Transport dimensions approx. 3900 x 2100 x 1400 mm LWH
Weight approx. 2500 kg

To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment

Sold as is

Technical details, description of condition, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee
Subject to prior sale
For used machines, any warranty is excluded, the following applies: “sold as seen”

Terms of payment: Prices excl. VAT, payment before collection or dispatch

Terms of delivery: ex warehouse
