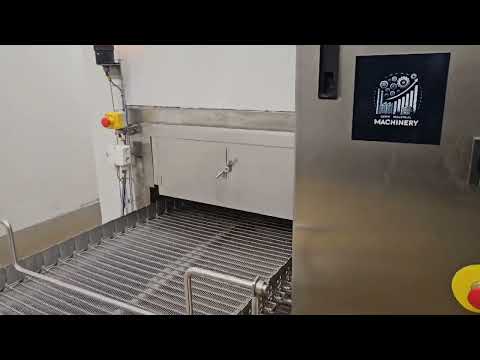

Spiral freezing tunnel

JBT Frigoscandia GC M7 /2 (+1)-08- 24-16 (+8) NS CR SD

Self-stacking spiral freezer belt, Frigoscandia FRIGoBELT NOVA (the newest type of belt)
Link height: 80mm / max. product height: 65mm / Net belt width: 760mm / Belt width between infeed covers; 700mm / belt stack with 24 tiers / Belt mesh: M6-1.5 / 24 tiers (possible to put more tiers)
Layout N-S CR
Evaporators SS/AL (Sequential Defrost) / number of coils: 3 / number of fans: 3 Standard
CIP cleaning system
Psdoulr Riopfx Ab Degw
Automatic Air Balance Control
Evaporator design pressure: 50 bar
Enclosure: S/W (Stainless steel inside and white outside) / thickness: 150mm
Refrigerant: CO2 / refrigeration feed: pump
PLC type in control panel: Siemens S7
Variable frequency drive: Danfoss
VPN remote access
ProCare service reports available - last July 2023
Full documentation available
Dismantling under the supervision of JBT
Valve island available (not included in the price)
