Combined planing-thicknessing machine

HOLZKRAFT CASADEI PFS 520 TERSA

With a 520 mm planing width, motorized thickness table adjustment, and comfort switching

- Stable steel and cast iron construction
- Large, ribbed jointer tables made of cast iron
- Smooth operation due to high dead weight
- Four feed speeds
- Motorized thickness table lift with two speeds and digital display
- Segmented pressure beam at the infeed
- Precision ball bearings on the four-knife cutterblock
- Helical, hardened steel infeed roller for especially consistent and gentle wood feed
- Outfeed roller with rubber coating

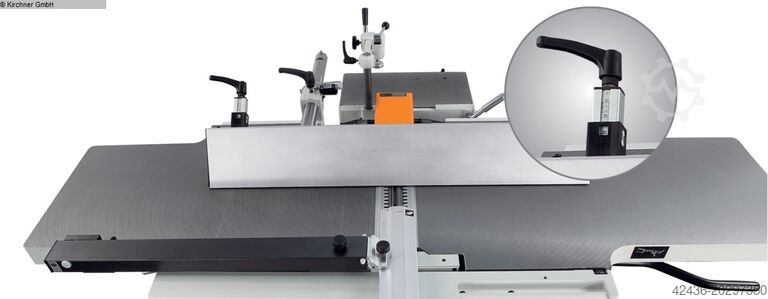

- Large tiltable fence, adjustable from 90° to +45°
- Standard auxiliary fence included
- Powerful industrial motor
- Pneumatic quick-change system with pneumatic raising and lowering of the jointer table
- The extraction port remains in the same position for both jointing and thicknessing operations—no need for additional extraction hoses, inconvenient switching, or rerouting around the machine

Scope of delivery:

Technical Data:

Dimensions and Weights:
- Length (product): approx. 2300 mm
- Width/Depth (product): approx. 1100 mm
- Weight (net): approx. 980 kg

Jointer:
- Total table length: 2300 mm
- Infeed table length: 1200 mm
- Working height: 930 mm
- Max. planing depth: 6 mm
- Fence length: 1200 mm
- Fence height: 190 mm
- Fence tilt: 90 – 45°

Extraction connection:
- Extraction port diameter, thicknesser: 120 mm

Installation Information:
Gkedpfxoxnqyho Aggsc
- Space requirement, length: 2300 mm
- Space requirement, width/depth: 1610 mm
Explanation: Max. travel paths or usable lengths are taken into account.
- Machine body length: 1235 mm
- Machine body width/depth: 850 mm
- Working area length: 1000 mm
- Working area width/depth: 3500 mm
Note: Please add the working area to the space requirement to determine the recommended free installation space for the machine.

Thicknesser:
- Min. working height: 3.5 mm
- Max. working height: 250 mm
- Max. cutting depth: 8 mm

Electrical Data:
- Main drive motor power: 7 kW
- Connection voltage: 400 V
- Frequency: 50 Hz

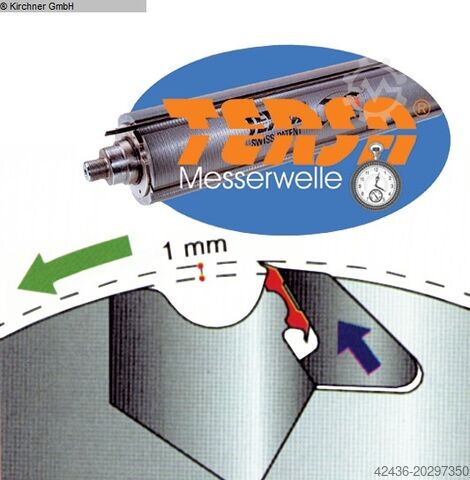

Cutterblock:
- Cutterblock type: TERSA
- Cutterblock diameter: 120 mm
- Number of knives: 4
- Cutterblock speed: 5000 rpm
- Max. planing width: 520 mm

Feed:
- Feed speed: 5/8/12/18 m/min
