Spindle moulders

HOLZKRAFT CASADEI F 25 LL-FK

Robust craftsman’s machine with a spindle moulder tiltable 45° on both sides and MK4 interchangeable spindle. Stable steel and cast iron construction. Dynamically balanced milling unit anchored to the worktable. Exceptionally robust build. Smooth operation due to precision components and high intrinsic weight. Standard features include reversible rotation (left/right) with electronic interlock when changing direction. Five speeds from 3,000 to 10,000 rpm. Speed change is operated easily and conveniently from the machine's side. Comes as standard with MK 4 interchangeable spindle system. Large grey cast iron worktable for sustained precision. Easy handling via controls and speed display on the machine's front. Large-dimensioned milling fence with fine adjustment and aluminium fence jaws included as standard. Fence adjustment via hand crank with numerical digital display of spindle height in 0.1 mm increments. Powerful industrial motors.

Delivery includes:

Technical Data:
Dimensions and Weight:
Weight (net): approx. 510 kg
_____
Dust Extraction Connection:
Extraction port diameter fence: 1 x 120 mm
Extraction port diameter machine: 2 x 80 mm
_____
Worktable:
Gkedpfxoxnqx Ro Aggec
Worktable length: 2,500 mm
Worktable width: 810 mm
Table height: 923 mm
_____
Setup Information:
Space requirement details: dimensions take into account maximum travels or working lengths.
Working area length: 3,700 mm
Working area width/depth: 5,000 mm
Note: Please add these working area dimensions to the space requirement to determine the recommended free installation area for the machine.
_____
Equipment:

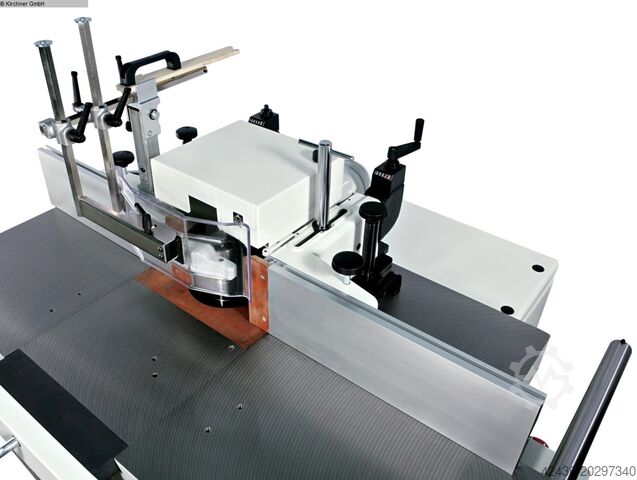

Milling fence: heavy-duty professional design with aluminium fence jaws and fine adjustment, adjustable from the front via hand crank with numerical digital display.
Arc milling safety guard: YES
Spindle height adjustment: manual
Spindle tilting adjustment: manual
Control: manual height and angle adjustment of the milling unit
Position of controls: on the machine body
Table features: table extension left and right and pull-out workpiece support (total width 2,500 mm)
_____
Electrical Data:
Supply voltage: 400 V
Mains frequency: 50 Hz
Drive motor power: 7.0 kW
_____
Milling Spindle:
Spindle tilt: -45 to +45 °
Usable spindle length: 140 / 180 mm
Clarification of usable spindle length: for spindle Ø 30-35 / for spindle Ø 40-50 mm
Milling spindle stroke: 90 mm
Interchangeable spindle: MK 4
Spindle speeds: 3,000/4,500/6,000/8,000/10,000 rpm
_____
Max. milling tool diameters:
Max. sinkable tool diameter: 320 x 60 mm
Max. profile milling diameter: 250 mm
Max. tenoning diameter: 350 mm
Max. contour milling diameter: 160 mm
