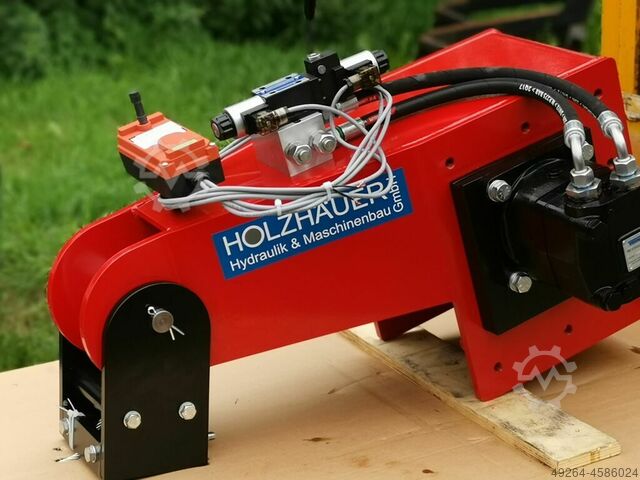

Hydraulic cable winch with el. valve

Holzhäuer HAW4000-EV

Hydraulic winch HAW4000 with electric valve for wheel loaders, excavators, cranes, mini-excavators, tractors in viticulture, horticulture, civil engineering, and many other applications.
The hydraulic attachment winch HAW4000 can simplify many applications.
Maximum rope capacity at 4000 kg pulling force: 60 m with 10 mm wire rope.
Maximum rope capacity at 3000 kg pulling force: 90 m with 8 mm wire rope.
Maximum rope capacity at 1700 kg pulling force: 150 m with 6 mm wire rope.
Maximum rope capacity at 3500 kg pulling force: 150 m with 6 mm synthetic rope.
Maximum rope capacity at 2000 kg pulling force: 220 m with 5 mm synthetic rope.
Standard equipment: 50 m of 10 mm wire rope.

⦁ In viticulture, agriculture, forestry, and horticulture
⦁ In civil engineering, construction, and road construction
⦁ For pulling out tree stumps and trees
Fsdpfx Acefn Tvkj Dsgd
⦁ As an attachment winch on logging cranes and excavators
⦁ As a winch for tractors, construction machinery, and grape harvesters

A robust steel construction with 3-sided mounting options (left, right, rear) with M16 threaded holes. This provides many possibilities for attaching the winch.
(Threads are cut and painted. They need to be re-cut before use for rust protection.)
Large, greaseable rope pulley for a long service life of the steel rope.

⦁ Maximum working pressure: 210 bar peak
⦁ Oil flow rate up to 200 l/min, briefly max. 240 l/min
⦁ Maximum pulling force: 4000 kg
⦁ Rope speed: 140 m/min at an oil flow rate of 200 l/min
⦁ Weight: 170 kg
⦁ Color: Red

The winch can be installed in various positions.
A hydraulic brake is available as an option.
Depending on the required pulling speeds and forces, we can offer you different options.
Please contact us; we will be happy to advise you.

Dimensions:
⦁ Length: 850 mm
⦁ Length with rope inlet: 970 mm
⦁ Front width: 200 mm
⦁ Rear width: 300 mm
⦁ Bearing width: + 50 mm
⦁ Motor width: + 300 mm
⦁ Overall width: 650 mm
⦁ Height: 420 mm
