GM Gera ARCADE GEL 6 RV1-VL 362/110-30 Bottle Washer (2010)

GM Gera Flaschenreinigungsmaschine

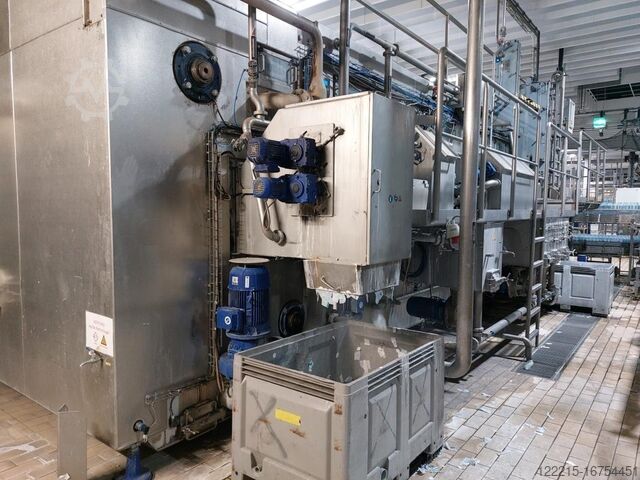

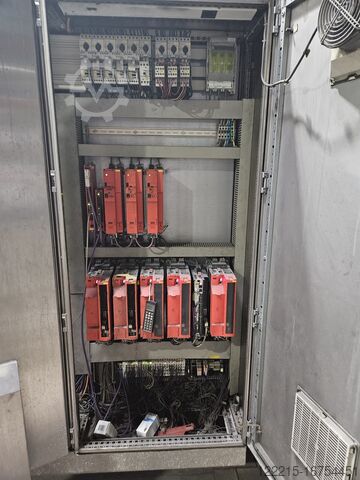

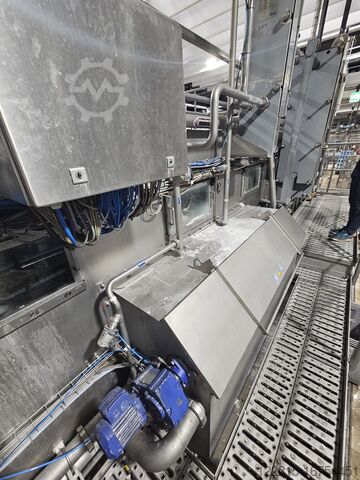

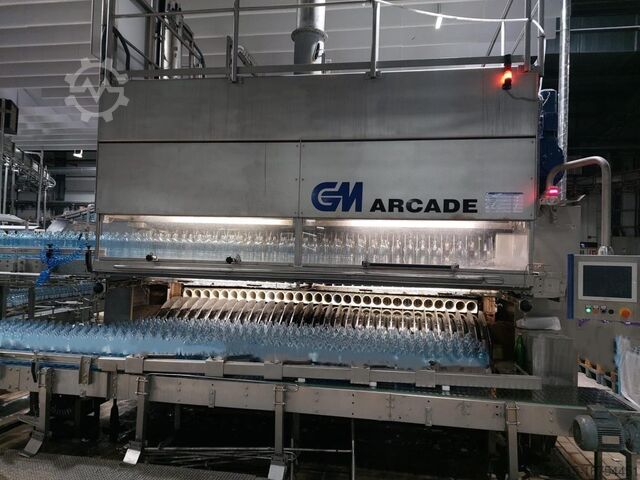

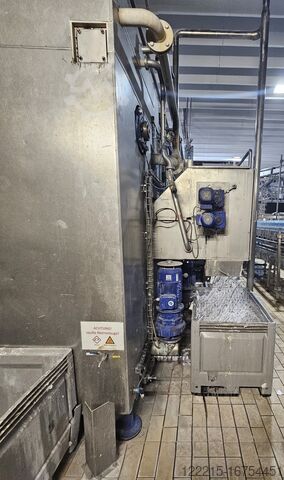

Overview   This ARCADE GEL 6 bottle washer was built in 2010 by the German manufacturer GM Gera. The machine is still in operation and can be inspected in person at any time. The ARCADE GEL 6 is fully functional and must be replaced due to an increase in performance.   Technical details   Nominal output: 33,000 bph   Control range: 13,200 - 36,300 bph   Chain pitch: 169 mm   Cell pitch: 110 mm   Bottle cells per row: 30 pieces   Total bottle cells: 7,860 pieces   Bottle cells, loaded: 7,680 pieces   Consumption  Compressed air: 1m³   Steam (operation): 489 kg/ h   Steam (heating): 4,430 kg/ h   Electrical power: 48.4 kW   Water: 7.35 m³/ h   Bath volume   Pre-soak: 2,263 l   Pre-caustic: 7,240 l   Caustic 1: 31,755 l   Caustic 2: 350 l   Hot water 1: 350 l  Hot water 2: 350 l   Cold water: 350 l
