KUKA Stone milling machine

Zeykan Robotics s.r.o KUKA KR240 RoboMill Collected

____RoboMill 2KR240 S20BT40 TT6t TB16 WM1 Collected

Next Generation Robotic Stone Processing Complex

“NO CONCRETE FOUNDATION REQUIRED”

The robotic complex presented here is based on a KUKA KRC2 robot from 2012.

The system can also be supplied with:

- used KUKA KRC4 robots,
Kedpszawm Hjfx Ad Redt
- brand-new KUKA KRC4 robots,
- next-generation KUKA KRC5 robots.

Our company also offers larger robotic configurations based on the KUKA KR360 / KR500 platform, available in both used and new versions.

Additional configurations are available with:

- fully automatic spindle and wire-frame exchange systems,
- additional milling spindles,
- wire-saw frames of various widths,
- additional technological heads,
- rotary tables with payload capacities of:

- 10 tons,
- 20 tons,
- 30 tons,
- additional protective safety fencing systems.

Introducing RoboMill — an adaptive multifunctional robotic system designed for:

- milling,
- contour cutting,
- wire-saw processing,
- stone slab machining.

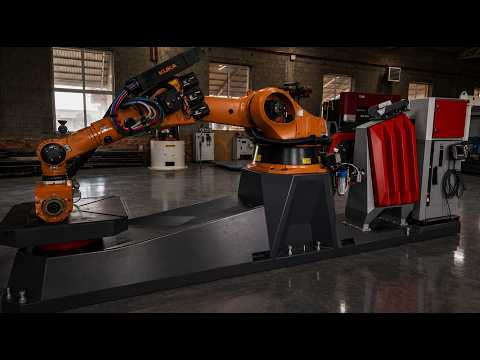

The key feature of the complex is its monobase construction, where all major system components are integrated into a single steel platform.

The robot, rotary table, electrical communication, air and water lines, spindle cooling system, positioning systems, tool banks, and auxiliary mechanisms are all mounted on one rigid structure.

This engineering approach provides several major advantages:

- preservation of system geometry even after transportation
- elimination of concrete foundations
- rapid deployment at a new location
- preservation of CAM-system mathematical accuracy without recalibration

Installation requires only:

- positioning the platform on the surface
- drilling six anchor holes
- fixing the structure using chemical anchors
- connecting electrical power, compressed air, and water supply

After that, the system is ready for operation.

- Standard Configuration

The complex is equipped with:

- industrial KUKA robot
- automatic 16-position BT40 tool bank
- semi-automatic spindle and wire-frame exchange system
- rotary table with payload capacity up to 6 tons
- 3200 × 2200 mm slab-cutting platform for disk machining
- integrated spindle cooling system
- internal routing of electrical, pneumatic, and water communication

____Robot System Functions

The robot memory contains:

- semi-automatic spindle and wire-frame exchange programs
- all 16 spatial tool pickup and return programs
- external kinematic models of the rotary table
- auxiliary positioning and safe-transition programs

Because all components are rigidly fixed to a single monobase structure, the center distances between the robot, table, and technological modules remain unchanged even after transportation.

This allows the CAM mathematical model to remain fully valid while minimizing setup and recalibration time after installation.

___RoboMill is not just a robot.

It is a mobile industrial platform for modern automated stone processing.
