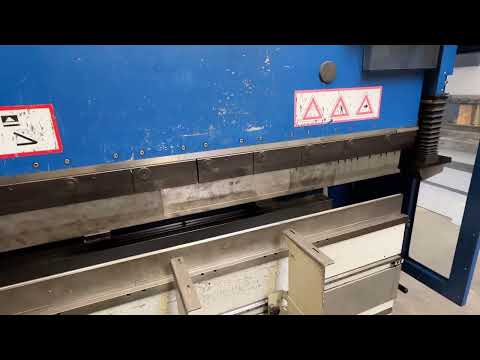

Press brake

TRUMPF 3066 2000mm x 66t

Hydraulic press brake
Manufacturer: TRUMPF, Type: TruBend 3066
Year of manufacture: 2008

Technical data

Manufacturer: TRUMPF
Type: TruBend 3066
Year of manufacture: 2008
Bending length: 2040 mm
Press force: 66 t
Free daylight between uprights: 2364 mm
Throat depth: 400 mm
Stroke: 200 mm
Y-axis rapid traverse speed: max. 200 mm/s
Y-axis working speed: max. 15 mm/s
Drive power: 17 kW
Dimensions: L 2.65 x W 1.85 x H 2.40 m
Weight: 5650 kg

Equipment
Blsdpfx Akozu Taweaen

- Electro-hydraulic upper drive
- Block hydraulics
- Controlled axes: Y1, Y2, X, R, Z1, Z2
- Automatic upper and lower tool clamping
- Self-adjusting crowning system
- Control system: Delem
- Light curtain at the front for laser safety
- Foot switch
- Tool package consists of:
Upper tool, straight, 28°, R1, 2000 mm, segmented
Lower tool, V10, 84°, H100, 2000 mm, segmented

All information is subject to change without notice.
