Shredder for plastic ZEIGE300 5,5Kw,

R-Techniq ZEIGE300

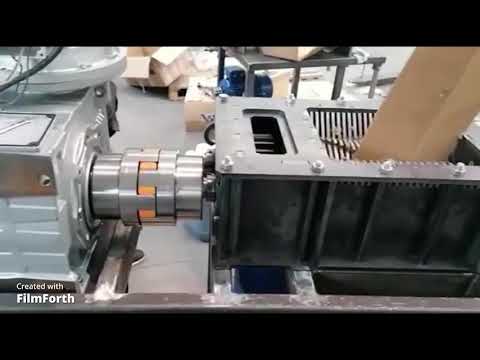

Shredder ZEIGE300 is a strong and reliable equipment.
We have calculated and designed everything so that the machine can withstand the loads that are required to shred plastic and similar materials.
The ZEIGE300 Shredder can grind any shape plastic that fits between the blades.
We have tested it with HDPE, PP,PET and PS.
The shredder has no restrictions on thickness.
Rodpfsg Rci Iex Apnou
If the piece of plastic is too thick, the blades will not shred because the machine is designed so that the plastic cannot jam the machine – automatic revers system.
PP, HDPE, PS from 0.7mm to 12mm have been successfully tested.
The films are too thin and slip between the blades.
We have not tested the Shredder on materials such as rubber, tires and thermoset materials
The shredder is also designed to be easy to clean and maintain.
Very fine shredding is only possible with a shredding of the same material twice.
Application:
ZEIGE twin-shaft mechanism machines are mainly used in the shredding process, plastic, cardboard, pine boards with low thickness cardboard dividers. Shredder for different types of plastics.
Compact mechanism design based on precious plastics – project adjusted to our needs.

Technical data:
Dimensions of the mechanism: 300x250mm
Inlet dimensions, upper part: 515x480mm
Drive of the machine: 1x3KW (electric motor)
Drive transmission: hardened zebra gear
Number of drive shafts: 2 pcs.
Number of knives: 26 pcs.
Thickness of knives: 6 mm
Machine dimensions: 1670x1410x600mm
Capacity: 40 kg/h
Construction: Solid frame construction with inlet for safety work.
Painting: Powder coating + wet paint
Control: SIEMENS

Algorithm switching on the reverse rotation in case of overloading the machine.
We can build any shredder with power up to 2 x 15 Kw. You can send RFQ we are Polish company full production process is done in our factory located in Tarnów.
Please send us You material we can test it and design the machine according to your needs.
