Gluing press / gluing star

Polzer EVA

Gluing press
Make: Polzer
Type: EVA

Gluing star with 6 gluing levels, each with 2 special heating plates
Gluing size 2100 mm x 1100 mm

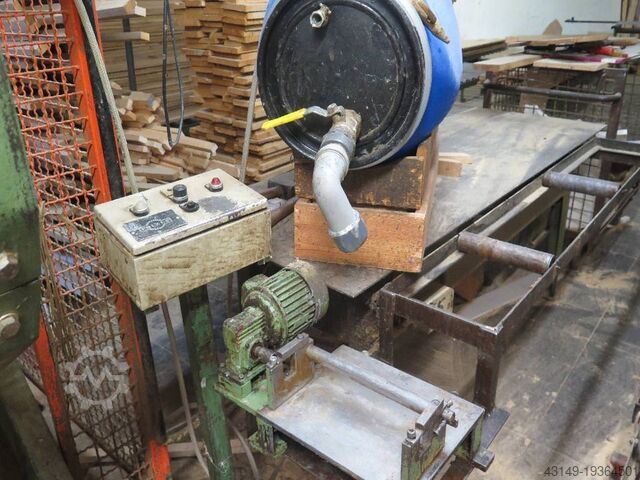

With glue application station
With 2 lifting devices for loading and unloading the plates
With roller conveyor
Workpiece thickness max. approx. 50 mm

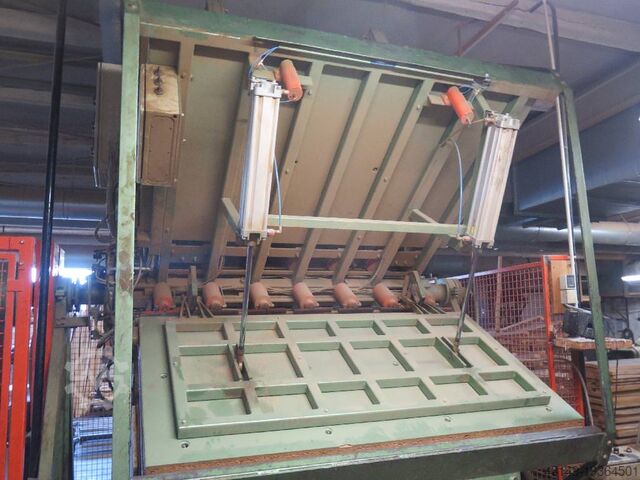

For removal, the plate is lifted pneumatically

Per level:
7 pneumatic pressure cylinders, 100 mm diameter,
100 mm stroke, pressing force 740 kg per cylinder,
moving pressure plate 250 mm x 40 mm
2 cylinders to operate the upper heating plate
Insertion opening 700 mm
2 electric heating plates
Each heating plate 220/380V, 3 kW, thermostat 0 – 120°C

Operating pressure 8 – 10 bar
Bonding temperature adjustable, ideally 50-65°
Performance approx. 50 m²/h
With safety guard

Nlodpfx Aswr Tyzsn Tja
External dimensions approx. 4000 mm x 4000 mm x 3600 mm
