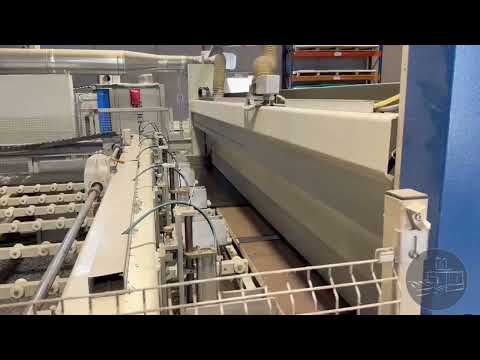

Panel saw

MAYER PS 2 Z

Maximum cutting width: 4200 mm
Maximum cutting length: 4200 mm
Motor: 24 kW with frequency control, 1200 - 4200 rpm
Circular blade diameter: 500 mm
Njdpfoy U E Nmjx Adwjwg
Blade overhang: 137 mm
Feed speed: 2 - 100 m/min, return speed approximately 120 m/min
Rapid stop while in motion with automatic panel recognition or via a pre-selection switch
Double pressure on the clamping beam, can be activated
Sliding table 2000 x 600 mm with air cushion
3 side tables 2000 x 600 mm with air cushion and front rollers, movable via linear guides and rollers
Dust extraction port: 100 x 50 mm
Lateral pressure roller behind the cutting line, adjustable from 20 to 2,200 mm
Control system: PC 7000
