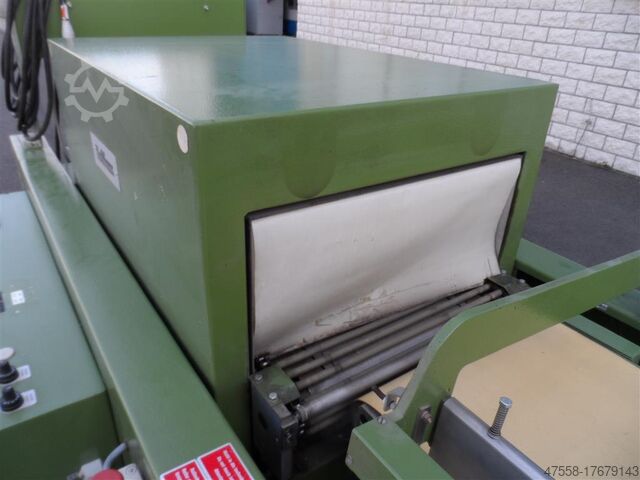

Foil-wrapping machine with shrinking tunnel

Kallfass KC 5040

Technical details:

mould plates - length / width: 500 x 400 mm
Heating: Zweistufen Heizung 4,6 und 6,0 kW
control: SPS
voltage: 380 V (3x 20A) / 24 DC V
work height adjustable: 870 - 970 mm
total power requirement: 6 + 2,5 kW
dimension machine xH: 2,8 x 1,1 x 1,3 m
weight: 570 kg

Compact angle welding machine with shrink tunnel
PACKAGING MACHINE WITH SHRINK TUNNEL AND COOLING STATION AND SPECIAL COOLING FAN
movable/mobile

Application areas/products:
-div. brochures, plans or other made of paper/cardboard in DIN A 5 / DIN A 6
Nedpfxou Nu Hij An Tjwf
Applicable films: all half tube shrink films up to 0,060mm
Welding system = impulse welding, with teflonized separation seam, adjustable
automatic transport of goods into the shrink tunnel


further details:
-Tunnel passage width: 450mm
-Tunnel passage height adjustable to 100, 200, 300 and 400mm
-length of the heatable tunnel hood 900mm
-Prod. output of the machine depends on product and film 5 to 20 cycles / minute (manufacturer's data)
-max. film width (folded half tube) 550 / 550mm at 25 - 50 my
-frame dimension 500 x 500 x 290 mm = max. Verpackungsmaß

Heating:
-two stage heating 4,6 and 6,0 kW
-Fan infinitely variable

Cooling station:
-outlet 300mm
-with blower

Conveyor belt:
-feed rate 2.5 - 12 m/min
-steplessly adjustable
