Labeling system

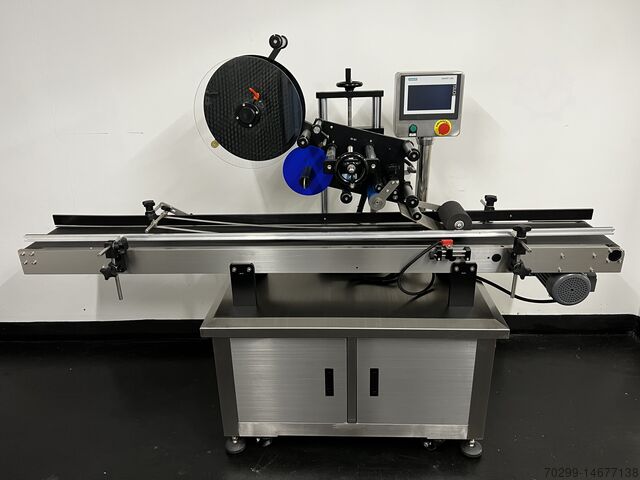

ISY PACK GmbH ET2-130

The aim of the labeler is to label flat bags from one side.

- Liner material: translucent paper (tear-resistant)
- Repeat length: Label length + min. 3mm
- Machine materials: SS304 and anodized aluminium alloy
Lasdpfx Aoq U Sfwjdvea
- Stepper and servo motors for precise positioning of the label
- Controlled by a Siemens PLC
- Label roll inside: 76 mm
- Label roll outside: max. 350mm
- Accuracy: ± 1 mm (except for product and label errors)
- Label dimensions (LxW): 15-300mm x 10-130mm
- Power: 2.0kW / 230V / 50Hz
- Dimensions (LxWxH): 2,000mm x 800mm x 1,500mm
- Weight: approx. 180 kg
