Band Saw - Automatic

GERD WOLFF KLS 550 x 700

cutting diameter 570 mm
saw band length 7250 x 41 mm
cutting width 1,3 mm
capacity 90 degrees: square 550 x 550 mm
capacity 90 degrees: flat 550 x 700 mm
total power requirement 4 kW
weight of the machine ca. 6050 kg
required space 2600 x 1300 x 3700 m
The KLS 550 x 700 is a semi-automatic and column guided
horizontal bandsaw.

Standard specifications


- Swarf Brush
- Hydraulic Blade Guide

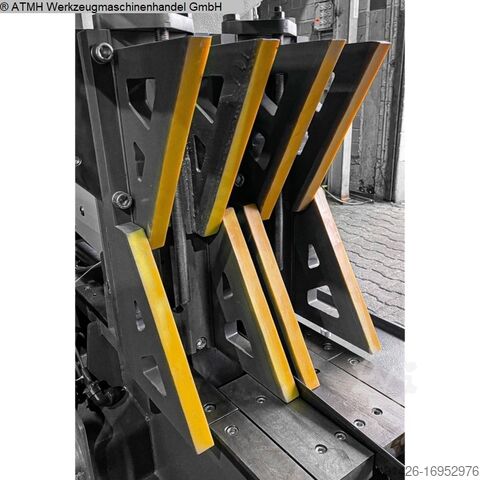

- Hydraulic Vice
Lredougnyuepfx Advju
- Hydraulic Blade Tension
- Blade Breakage Switch
- Stop System
- Automatic Ball Screw Lubrication
- Led Lighting
- Swarf Conveyor
- Swarf Carrying
- 1400 mm Feeding Drive
- Double Roller Table
- Material End Detector
- Program Saving System
- USB Connection Output
- PLC Control & Touch Screen
- Inverter

Optional specifications

- Laser Line
- Lubrication Mist
- V Shape Vice
- Extra Double Roller Table
- Upper Clamp System
- Curve Cutting Detecting Sensor



The pictures are for orientation only and do not represent a true-to-scale
image of the machine.
