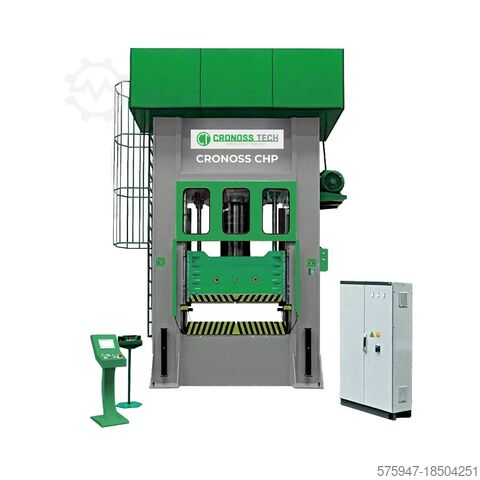

H TYPE 800 TONS HYDRAULIC PRESS

CRONOSSTECH CHP 800

PLACE OF PRODUCTION TURKEY
WARRANTY PERIOD 24 MONTHS

- Steel construction body and parts with vibration method stress / welding tension removed
- 8-surface slide / bearing for high precision and long-lasting use
- PLC control and touch panel
- Argon application for fixing elements and steel drawn pipes
- EN ISO 15614-1/2017 welding application certificate accredited by TÜRK-AK and approved by WPQR and WPS. (Welding applications are supervised by "welding coordination engineers" certified according to EN ISO 14731)
- Parallelism and perpendicularity tolerances are applied according to ISO AND DIN Norms. (≤ 120 microns/meter)
- PARKER / REXROTH hydraulic unit
- SIEMENS / SCHNEIDER electrical consumables
- Automatic central lubrication system
- Two-hand control
- Cooling system

FOR 800 TON H TYPE HYDRAULIC PRESS
TECHNICAL SPECIFICATIONS

TYPE STEEL CONSTRUCTION, 8 SLIDE H PRESS BODY TYPE
BODY MATERIAL St52 – ERDEMİR
SLIDE BEARING BRONZE Zr14
CAPACITY (RAM) 800 TON
MOVABLE TABLE DIMENSIONS 1500 x 2000 mm
FIXED TABLE TABLE DIMENSIONS 1500 x 2000 mm
PARALLELITY TOLERANCE 120 microns/mt.
PERIPHERALITY TOLERANCE 60 micron/mt.
STROKE (RAM) 800 mm
MIN. INTERMEDIATE SPACE 100 mm
MAX. INTERMEDIATE SPACE 900 mm
Lrsdjvy Av Nepfx Advsu
WELDING STRESS RELIEF Stress relief by vibration
WELDING APPLICATION EN ISO 15614-1/2017 welding application certificate accredited by TÜRK-AK and approved by WPQR and WPS. (Welding applications are supervised by “welding coordination engineers” certified according to EN ISO 14731)
MAX. WORKING PRESSURE 250 Bar
TOTAL MOTOR POWER 75 kW– IE3
MAIN PUMP 70 cm³ – REXROTH or PARKER
MOVABLE TABLE FAST Descent Speed 150 mm/sn.
MOVING TABLE PLASTERING SPEED 12 mm/sec.
MOVING TABLE RETURN SPEED 170 mm/sec.
MAIN CYLINDER INNER DIAMETER Ø 390 mm – Ck45 - 2 pcs.
AUXILIARY ACCELERATOR CYLINDERS 2 pcs.
APPROXIMATE HEIGHT OF PRESS 6000 mm
APPROXIMATE WIDTH OF PRESS 3350 mm
APPROXIMATE DEPTH OF PRESS 2700 mm
LOWER TABLE HEIGHT FROM GROUND 1450 mm
PRE-FILL VALVE NG 200
HYDRAULIC UNIT REXROTH or PARKER
COOLING SYSTEM SUCTION – CIESSE – PARKER
OFF-LINE FILTRATION REXROTH or PARKER
MOTOR CLASS USED FOR THE UNIT IE3
LEVEL INDICATOR REXROTH or PARKER
AIR FILTER REXROTH or PARKER – 10 MICRON PERMEABILITY
RETURN FILTER REXROTH or PARKER – 25 MICRON PERMEABLE
OIL AND HEAT INDICATOR REXROTH or PARKER
VALVES USED REXROTH or PARKER
FILTER CONTAMINATION WARNING ELECTRONIC CONTROL
LUBRICATING STYLE AUTOMATIC – (CAN BE ADJUSTED FROM THE SCREEN)
RAM STROKE ADJUSTMENT CAN BE ADJUSTED FROM THE SCREEN
RAM TONNAGE (PRESSURE) ADJUSTMENT CAN BE ADJUSTED FROM THE SCREEN
SYSTEM ERROR INFORMATION CAN BE VISIBLE ON THE SCREEN
PRESS STATUS INFORMATION CAN BE VISIBLE ON THE SCREEN
MOLD MEMORY CAN BE ADJUSTED FROM THE SCREEN
HYDRAULIC UNIT OIL TEMPERATURE INFORMATION CAN BE VISIBLE ON THE SCREEN
LINEAR DISTANCE SCHEDULE NOVATECHNIK or TURCK
PLC APPLICATION DELTA
TOUCH PANEL SCREEN DELTA 7 ‘’
SWITCH MATERIALS SIEMENS – SCHNEIDER
APPROXIMATE WEIGHT 45 TONS
