CNC machining center with edge

BIESSE ROVER A 1343 EDGE

CNC machining center with edge banding for shaped workpieces

Working dimensions for Y1 axis:
X axis: 4,300 mm
X axis pendulum operation: 1,620 mm
Y axis: 1,320 mm

Working dimensions for Y2 axis (edge processing):
X axis: 3,300 mm
X axis pendulum operation: 600 mm
Y axis: 1,240 mm

Work table:
8 ATS workpiece supports with 3 vacuum cups each
Bedpfx Asxraimsm Ueli
8 rear workpiece stops, program-controlled lowering, each mounted in one support
8 workpiece stops, 670 mm from rear, each mounted in one support
2 + 2 lateral workpiece stops
4 removable center stops
6 lift rails, pneumatically program-controlled lowering, for positioning heavy workpieces

Automatic positioning of workpiece supports and vacuum cups via EPS (Electronic Positioning System)

Automatic central lubrication
Vacuum system divided into 2 separate work zones along the X axis
Vacuum assist system for clamping templates

Chip conveyor integrated into the machine table

Vacuum pump 90 cbm/h

Processing head equipment:
Mounted on Z2 axis
Drilling head BH 26 2L with:
16 vertical drilling spindles, individually selectable
2+2 horizontal drilling spindles in X direction
2+2 horizontal drilling spindles in Y direction
Grooving saw, diameter 120 mm, fixed in X direction
Grooving saw, diameter 120 mm, fixed in Y direction

Milling spindle 13.2 kW (11 kW in S1 operation), HSK 63 F
Mounted on Z1 axis
Speed range 1,000 – 24,000 rpm
Clockwise and counter-clockwise rotation

C axis 360 degrees for adapter units

Cleaning nozzle for cleaning the milled edge before the edge banding process

Tool magazine for 16 tools

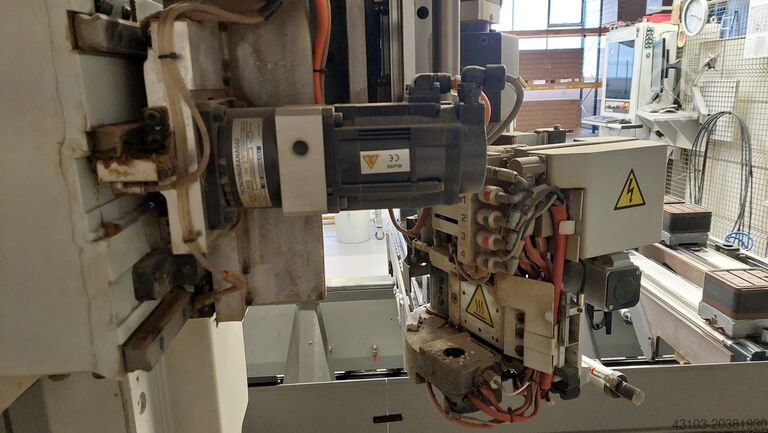

Edge banding unit for workpieces up to 60 mm thickness
Edge banding unit CNC controlled, with 360 degree endless rotation
Glue application for hotmelt adhesive
Double pressure roller, interchangeable and can be switched off
Heating lamp for preheating edge band material
End trim unit to cut the edge band material at an 8-degree angle to the workpiece edge using circular saw blade
Technical data:
Plastic edge thickness 0.4 – 3 mm (*)
Solid wood edge thickness 0.4 – 2 mm (*)
(Best results achieved using wood edges with primer from 0.4 – 1.2 mm)
Max. edge height 64 mm
Panel thickness min. 14 mm, max. 60 mm
Min. inside radius 18 mm for edge thickness less than 1 mm
Min. inside radius 30 mm for edge thickness 2 mm
Min. panel size for edge banding: 300 x 300 mm
Min. size for edge banding of internal cutouts: 350 mm, with plastic edge max. 1 mm thickness and max. panel thickness 18 mm

Edge magazine for 2 rolls, positioned outside the machine—this solution limits pendulum processing.
Roll diameter for edge material: 800 mm

Safety equipment:
* Safety mats in front of the machine
* Safety fence on the right with access door

Without tools

Control system:
PC control with BIESSE WORKS ADVANCED
Restart after emergency stop
BIESSE WORKS office version

Units:
- Flush/radius trimming unit
- Combination profile/flat scraper unit
- Sawing unit
