Band Saw - Automatic - Horizontal

BERG & SCHMID SBS 300 VA-I / CNC

300 mm
300 mm
300 x 260 mm
saw band length 3920 x 34 x 1,1 mm
Bsdexfwbtspfx Agijld
table height 780 mm
band speed 20 - 100 m/min
total power requirement 3,7 kW
weight of the machine ca. 1,65 t
dimensions 2,0 x 2,05 x 1,7 m
Unused display machine!!!!

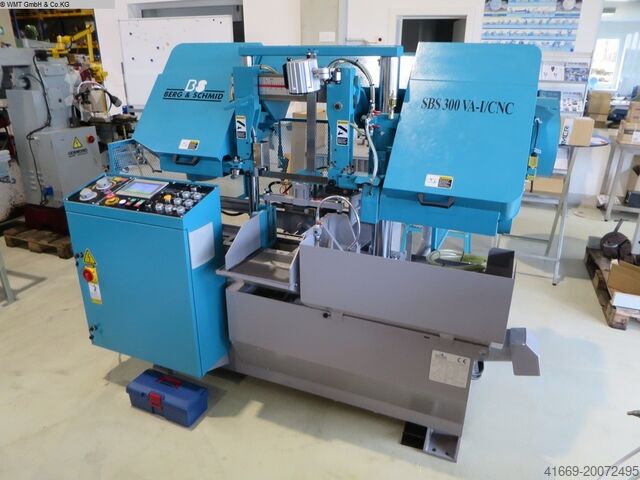

2-column high-performance automatic band saw from the SBS series

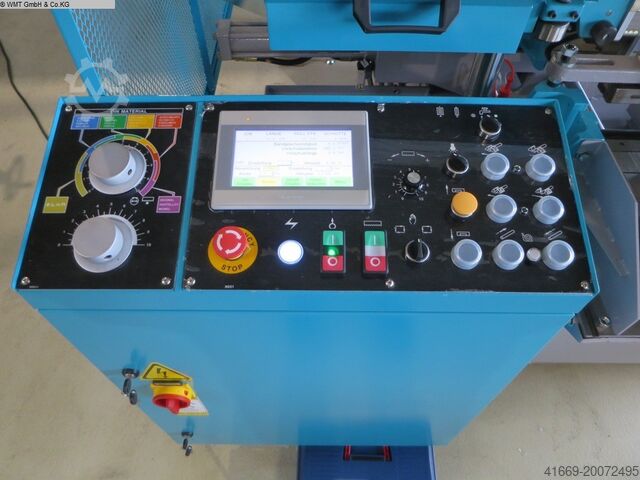

• Modern SNC 20 control system for CNC models
• Frequency-controlled saw drive
• Work light
• Powered chip brush
• Hydraulic band tensioning
• Clamping pressure adjustment
• Double vise (before and after the band)
• Creep speed for positioning
• Bundle tensioning, electrically and hydraulically prepared
• Chip conveyor

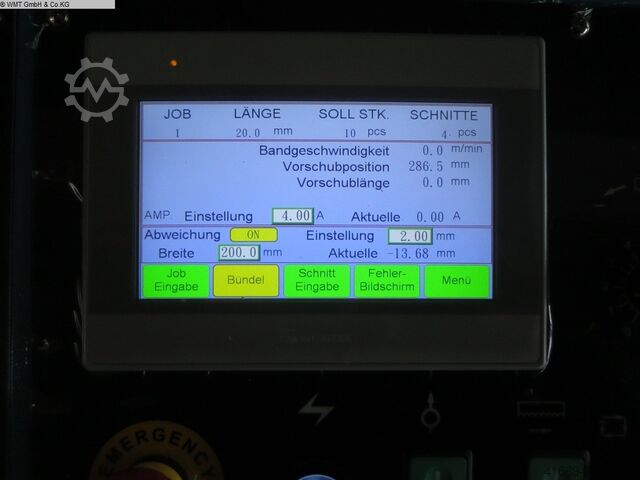

The SNC 20 control system allows for convenient and uncomplicated input of
up to 20 different sawing tasks (length and quantity). When the
target dimension is entered, the control system automatically calculates the saw waste and the number of
feeds. In addition, the error code display system provides quick
analysis for troubleshooting.

Including band path detection (1800 EUR)
