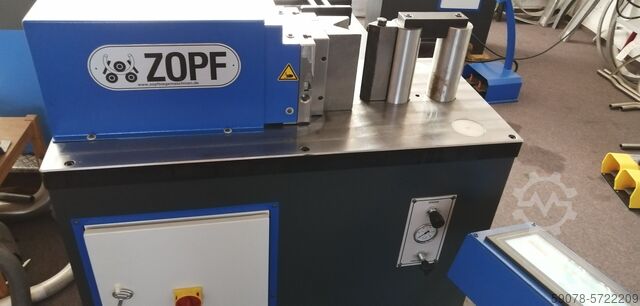

Horizontal Bendingmachine

Zopf T200

Maximum pressure: 20 tons
Stroke length: 200 mm
Maximum speed: 10mm/sec
Return speed: 20mm/sec
Work table: 480x1060 mm
Working height: 900 mm
Oil tank: 10 Liter
Fjdpfx Agohgib Ns Iegk
Maximum workpiece height: 200 mm
Strip capacity: 200x12 mm
Pipe capacity: 48x4.0 mm *not with standard tools

- Digital limitation of the stroke and the return stroke.

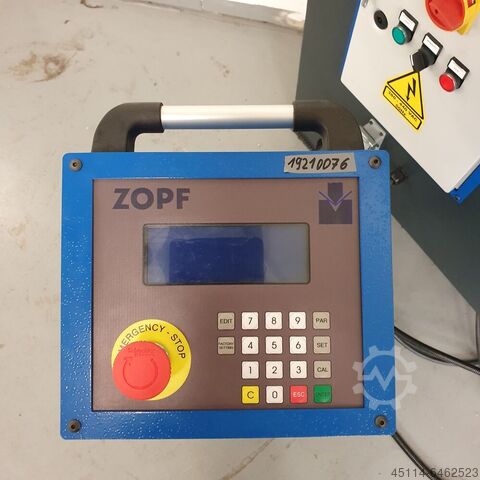

- NC control.
- Hydraulic pressure adjustable
- Bending speed adjustable
- Completely closed table
- The ZOPF construction makes it possible to change tools quickly and without loss of accuracy
- The hydraulic cylinder is mounted on the heavy-duty machine table, which means that even under heavy load there is no
loss of accuracy occurs.
- With the universal tool holder and the various tools, you can work extremely flexibly.
