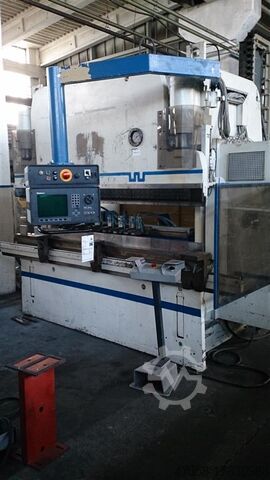

Hydr. pressbrake

WEINBRENNER GP 50

Technical details:

pressure: 50 t
chamfer lenght: 2550 mm
distance between columns: 2045 mm
throat: 250 mm
stroke: max. 170 mm
back gauge - adjustable: ca./approx. 800 mm

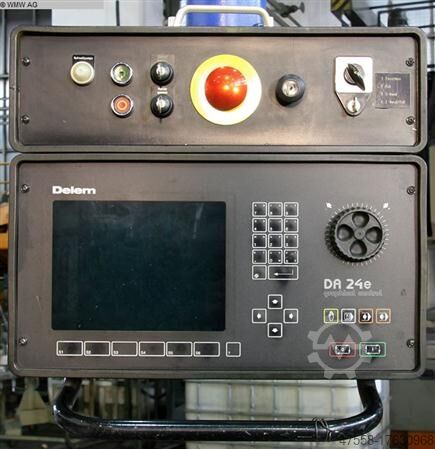

control: DELEM DA 24 e
stroke speed - idle stroke upwards: 80 Hub/min
stroke speed - idle stroke downwards: 160 Hub/min
total power requirement: ca./approx. 7,5 kW
weight of the machine ca.: 6,2 t
machine dimensions LxWxH: 3,3x1,8x2,7 m

- back gauge motorized adjustable
- crowning
Nlodpfx Anou Ib D Es Tea
- biggest distance between table and bottom edge of the ram = 600mm
- smallest distance between the table and the lower edge of the ram = 430mm

The machine has a control malfunction ( DELEM) and will be sold as is!
i.D.

*
