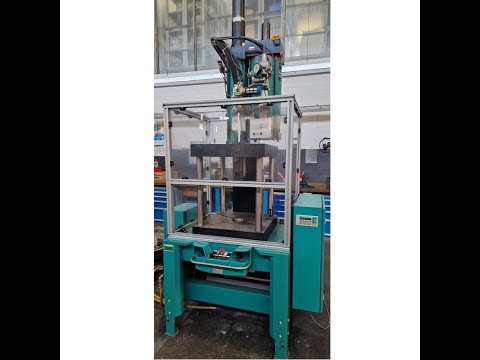

Pneumatic Press

TOX MAG 030.202.A.001 (CE)

pressure 30 t
Stroke 190 mm
distance between columns 440 mm
side window 450 mm
daylight (max. stroke up, adjustment up) 350 mm
Bedpfjyfwvrjx An Ijdd
table surface area 595x450 / 440x595 mm
table height over floor 725 - 900 mm
table adjustment range 175 mm
ram surface 90 mm
power requirement 0,5 kW
Weight 1,20 kg
dimensions (WxDxH) 1,5 x 1,0 x 2,9 m
SPECIAL DEAL
as is where is, WITHOUT additional work
free loaded to truck
Basic unit power pack K 30.181-190.10
with stroke limitation, anti-rotation protection, universal underframe UUM 1-200.031, adjustable working height
Total stroke 190 mm / power stroke 10 mm
