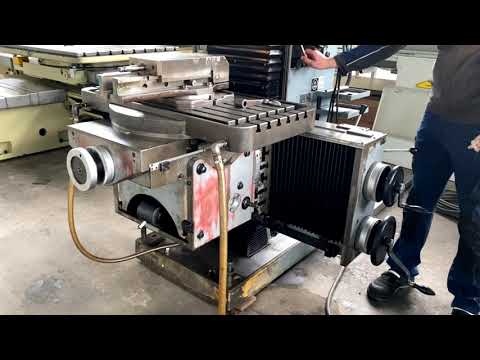

Universal Milling Machine

Maho MH 800

Technical details:

x-travel: 700 mm
y-travel: 450 mm
z-travel: 450 mm
spindle cone ISO: 40 (SK 40)
table surface area: 760 x 420 mm
table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min
table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min
spindle turning speed - continuous: 32 - 1600 / 18 step U/min
spindle head swivable left - right: 10 ° links / rechts °
quill stroke vertical: 125 mm
feed continuous: 10 - 500 / 8 step mm/min
rapid traverse: 1,4 m/min
Rsdpfx Asvc Avhsk Tjcf
Total power requirement: 6,5 kW
weight of the machine ca.: 3,0 t
dimension machine xH: 2,3 x 2,0 x 1,85 m

Further features:
Headstock projection min./max.: 2094 / 2544 mm

Equipment:
-cooling water pump with feed
-Linear path measuring system - Heidenhain ND750

Accessories:
-Machine vice

*
