Belt conveyor

Lippert 20200-750-600

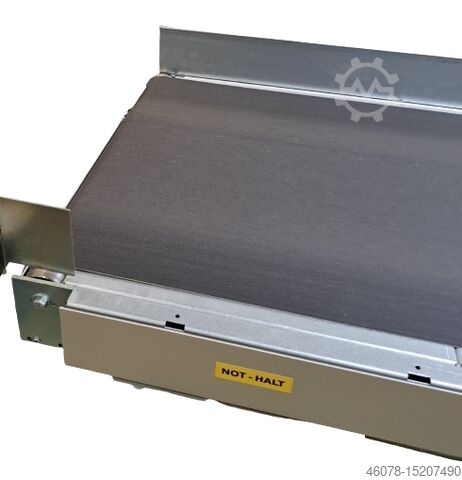

Lippert belt conveyor GF 20200-750-600

RA2122

Technical data:

Conveyor length (NL): 20200 mm
frame width (NB): 750 mm
belt width (GuB): 600 mm
Overall height (BH): 120 mm, 430 mm with motor
Supporting feet: optionally available
Conveying speed (v m/s): Contact us and we will try to meet your preferred conveying speed.
Drive: SEW gear motor, R37 DRE80M4/TH
Electrical data: 50Hz V380-500, kW 0,75 S1
Drive drum: Ø = 81 mm
Belt return roller: Ø = 81 mm
Gsdpfxorudccj Ac Dobp

Optionally available:
Supports
Side guide on one side and on both sides
Frequency converter for stepless speed change
Adjust length (longer/shorter)

Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany

For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
