Kinshofer Palettenzange / Zange KM 332 V - 1100

For inquiries regarding the attachment, Mr. Herden will be happy to assist you (by phone at ...).

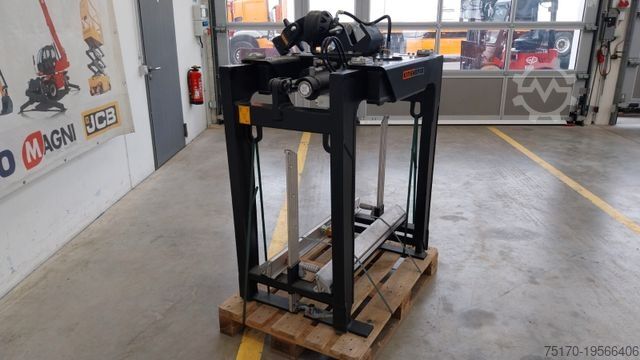

Kinshofer Pallet Clamp / Stone Stacking Clamp / KM 332 V ? 1100 / NEW

Price: €8,790.00 net / €10,460.10 gross

Insertion depth (mm): 1,100 – 1,650
Load capacity at min./max. insertion depth (kg): 1,900 / 1,350

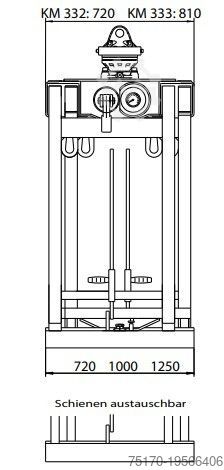

Jaw opening width A min./max. (mm): 400 – 1,400
Height (without motor) (mm): 1,315 – 1,865
Weight (without clamping rails) (kg): 340

Operating pressure based on flow rate:
20 – 26 MPa (200 – 260 bar) at max. 75 l/min and 20 – 37 MPa (200 – 370 bar) at max. 40 l/min

The technically advanced KM 332 stone stacking clamp is highly versatile and suitable for both palletized and non-palletized building materials.

- Fixed or adjustable insertion depth with parallel-opening and closing gripping arms, hydraulically operated.
- Flexible application thanks to opening widths from 400 mm to 1,400 mm, e.g. for loading individual concrete elements such as curbstones up to complete brick packages.
- Adjustable insertion depth – ideal for loads of varying heights.
Csdpfx Abswzd Ihefsrh
- Synchronization of the gripping arms via two hydraulic cylinders connected by a differential circuit.
- Safety is ensured by an overpressure valve on the hydraulic system, which protects against overload. A check valve prevents the package from slipping even if there is a loss of pressure in the carrier unit.
- Durability is achieved through generously sized bearings, an integrated lubricant reservoir, automated main bearing wear compensation, and spherical rod end bearings on the cylinders.

We stock a wide selection of various attachments, available immediately!

Mr. Herden (phone ...) will be glad to assist you.

Financing offers available upon request.

We are an official sales and service partner for Westtech, Magni Telehandlers, Gierking GMT, OilQuick, Weber MT, Holp, DMS, Seppi M., JCB Construction Equipment, Mercedes-Benz, and Iveco.
Additionally, with 800 used vehicles in stock, we are one of the largest commercial vehicle dealers in Germany.

Errors and prior sale excepted!
