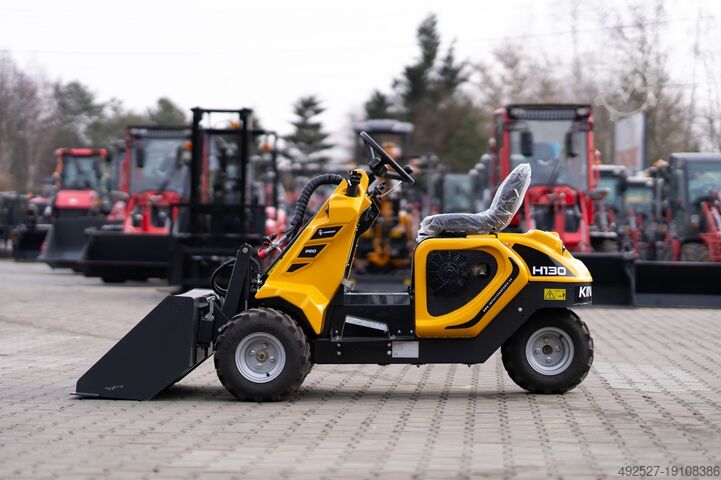

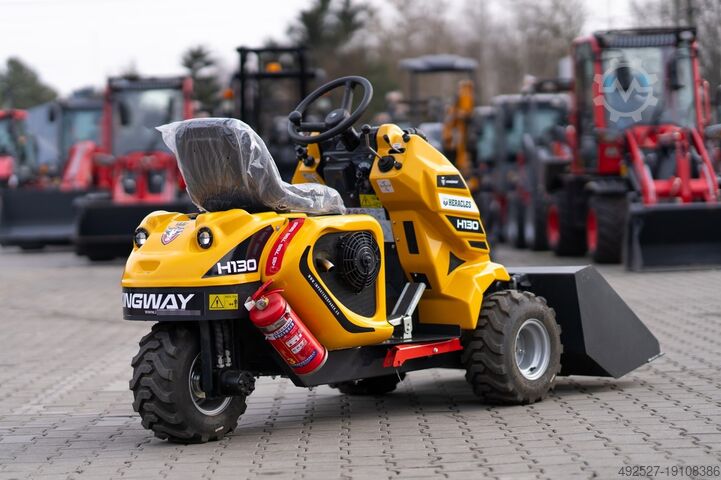

KINGWAY DEUTSCHLAND e. K. Kompaktlader HERACLES H130

The KINGWAY HERACLES H130 is a surprisingly small machine with great capabilities, equipped with a hydrostatic 3WD drive. Thanks to its compact dimensions and a turning radius of just 993 mm, it offers exceptional maneuverability, allowing it to work in tight passages. Powered by a 16.8 kW RATO engine, it offers high performance while meeting environmental standards (EU Stage V & EPA Tier 4 Final).

The machine features a mounting plate compatible with "Avant" and "Multione" attachments, increasing its versatility. With a maximum lifting capacity of 350 kg and a tipping load of 400 kg, it is ideal for agriculture, construction, and larger households. Its low operating weight of 500 kg and easy transport make it the ideal solution for users seeking a mobile and versatile machine.

The KINGWAY HERACLES H130 is perfectly suited for farms, construction companies, electrical and plumbing contractors, renovation companies, and similar service providers. We also guarantee customized after-warranty service. The machines are manufactured under the supervision of European technicians and feature a robust design that allows for use in all conditions.

TECHNICAL DATA:

Model: H130
Operating weight: 500 kg
Fpodpfx Aowifvcofhob
Lift height: 1600 mm
Engine: RATO R740D
Fuel type: Gasoline
Cylinders: 2
Displacement: 740 cc
Emission standard: EU Stage V & EPA Tier 4 Final
Max. engine power: 16.8 kW at 3600 rpm
Max. torque: 47 Nm at 2500 rpm
Cooling system: Air-cooled
Operating voltage: 12 V
Battery: 20 Ah
Max. tipping load: 400 kg
Max. lifting capacity: 350 kg
Operator cab: None
Travel speed: 0~15 km/h
Steering angle: 0~360°
Turning radius (inside/outside): 0/993 mm
Standard tires: 18×9.50-8
Fuel tank: 10 l
Hydraulic oil tank: 10 l
Hydraulic flow rate: 29 l/min
Hydraulic pressure: 160 bar
Transmission type: Hydrostatic
Length: 1854 mm
Width: 993 mm
Bucket width: 1000 mm
Height: 1304 mm

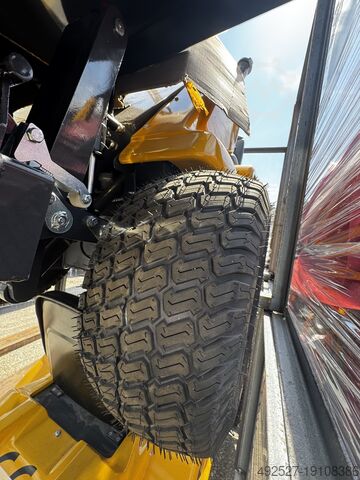

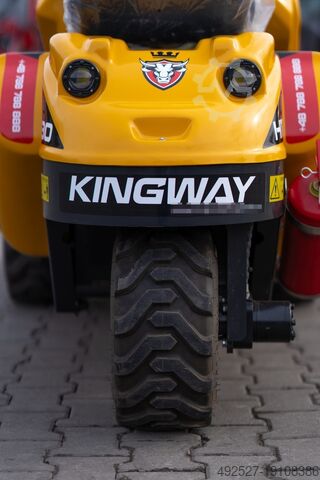

The machine is equipped with different tires than those shown in the pictures. The current tires are shown in the last two photos.

Price:
Net: €6,600
Gross: €7,854

Warranty:

Each machine comes with a 12-month warranty, which can be extended for an additional year.
After the warranty period, we ensure our customers have access to all spare parts.

Service:

We have our own mobile service that reaches all our customers in Germany and abroad.
KINGWAY is the leading and largest importer of construction and agricultural machinery in Europe. We have been operating in the European market for 25 years and import and sell approximately 3,000 to 4,000 machines annually, earning us the trust of many customers.
