Column Drilling Machine

GSP 205 R

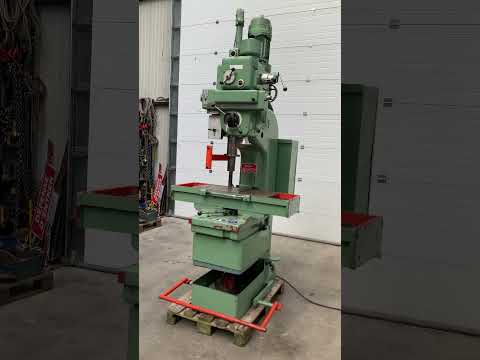

Column Drilling Machine GSP type 205 R
Spindle: Ø 100 mm
Cone CM4
Spindle exit: Ø 300 mm
Rotation: from 12 to 1800 RPM
Table size: 800 x 400 mm
Year of construction: 1982
Maxi distance spindle nose/tablein low position: 700 mm
Mini distance spindle nose/table: 250 mm
Throat depth: 400 mm
Cross-table 1150 x 400 mm
Drilling/tapping function
Bjdpfx Aiozbhu Rs Ielh
Automatic spindle advance
The manual descent of the spindle is hard (works perfectly in automatic advance)
Manual raising/lowering of the table
Voltage: 380 V
Width: 1300 mm
Depth: 1700 mm
Total height: 2700 mm
Weight: approx 1,5 T
