GEORG Slitter 1500x1,5

GEORG Slitter 1500x1,5

SLITTING LINE GEORG 1500x1.5x25

Main technical data

Coil thickness: 0.24 – 1.5 mm

Uncoiler coil weight: 25 Tn

Coil width: 230 - 1500 mm

Coil outer diameter: Max. 1850 mm

Working speed: 200 m/min

Slitting tolerance: +/- 0.125 mm

Line direction: Right to left

Recoiler coil weight: Max. 16 Tn

2 Slitting heads

PLC: Siemens S7 1200

Cutting capacity: number of cuts with 350 MPa

24 cuts for thickness 0.25 mm

28 cuts for thickness 0.50 mm

21 cuts for thickness 0.75 mm

18 cuts for thickness 1.00 mm

Bwjdpfxexl R A Ro An Hjn
15 cuts for thickness 1.25 mm

12 cuts for thickness 1.50 mm

Scope of supply

1. Coil Carriage

2. Uncoiler

3. Guiding system with 2 measured edges

4. 203.2 diam. Pinch roll before shear

5. Double interlock table

6. Slitting shear:Shaft diameter: 160 mm

7. 1 off line quick change slitting head available

8. Scrap press and conveyor

9. Intermediate coil table

10. Loop Pit and covering tables

11. Strips Braking Unit

12. Motorised recoiler with hold down separator arm

13. Unloading Coil Car

14. 4 arms turnstile

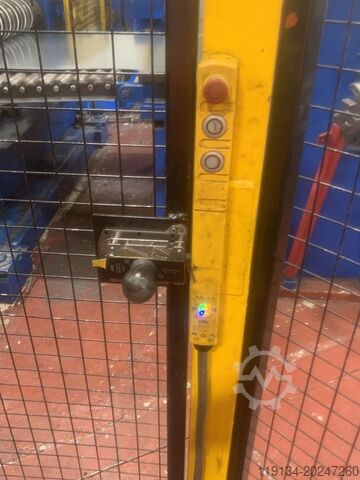

15. Electrical cabinets & Control panels

16. Existing tooling

17. Existing documentation
Coil thickness: 0.24 – 1.5 mm
Uncoiler coil weight: 25 Tn
Coil width: 230 - 1500 mm
Coil outer diameter: Max. 1800 mm
Working speed: 200 m/min
Slitting tolerance: +/- 0.125 mm
Line direction: Right to left
Recoiler coil weight: Max. 16 Tn
Slitting heads: 2
PLC: Siemens S7 1200
For thickness 0.25 mm: 24 cuts with 350 MPa
For thickness 0.50 mm: 28 cuts with 350 MPa
For thickness 0.75 mm: 21 cuts with 350 MPa
For thickness 1.00 mm: 18 cuts with 350 MPa
For thickness 1.25 mm: 15 cuts with 350 MPa
For thickness 1.50 mm: 12 cuts with 350 MPa
