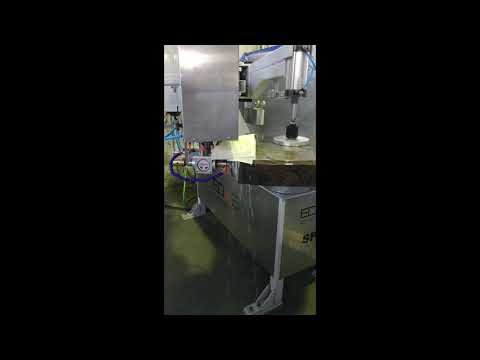

Side grinding machine SPM

EDAB / BOLEDAN SPM

Semi-automatic edge grinding machine for secondary sides and cover plates. Depending on the application, diamond grinding rollers or diamond grinding discs are used.

• Pneumatic workpiece clamping
• The workpiece can be freely rotated and securely clamped on a turntable
• Thickness of workpieces up to max. 18 cm
• Working area: max. 1.4 x 1.4 m
Fjdpfx Asxmuvdobnjpn
• Manual tool change
• Spindle mount M30
• Speed range 600–2,800 rpm
• Machine length: 1.7 m
• Machine width: 0.8 m
• Machine height approx.: 2 m
• Machine weight approx.: 500 kg
• Required space approx.: 2.7 m x 2.7 m
• Installed power: 5.5 kW
