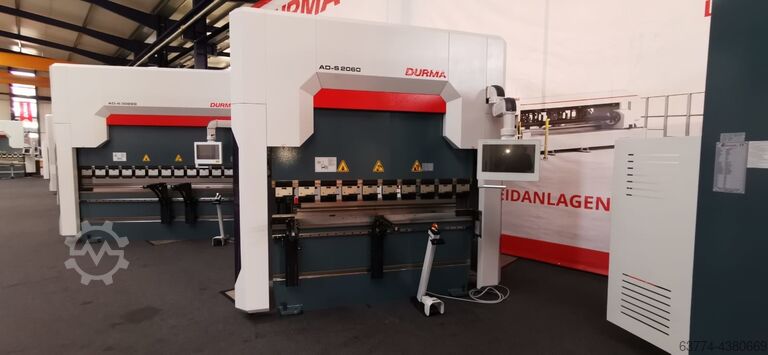

25% DISCOUNT 60 tons press brakeDURMA

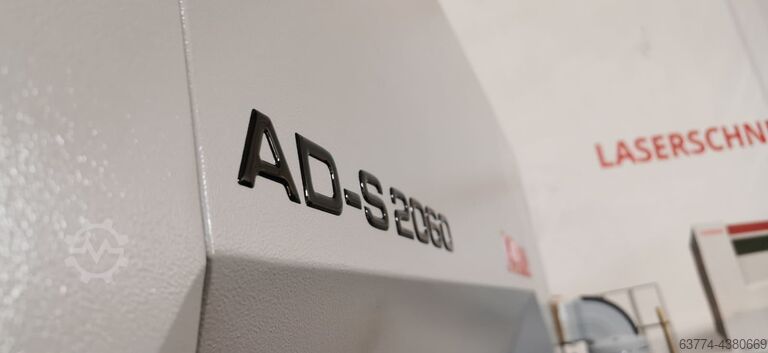

AD-S 2060
25% DISCOUNT 60 tons press brake
DURMA
AD-S 2060
سال ساخت
۲۰۲۴
وضعیت
جدید
موقعیت
Staufenberg

تصاویر نشان میدهند
نمایش نقشه
اطلاعات دستگاه
قیمت و مکان
- موقعیت:
- Robert-Bosch-Str. 4, 35460 Staufenberg, Deutschland

تماس بگیرید
جزئیات پیشنهاد
- شناسه آگهی:
- A4380669
- بهروزرسانی:
- آخرین بهروزرسانی در ۱۶.۱۱.۱۴۰۳
توضیحات
Länge/Breite/Höhe: 3200mm/1550mm/2750mm
Weight: 3550 kg
Bending force: 60 tons
Bending length: 2050 mm
Passage between stands: 1700 mm
stroke: 265mm
Installation height: 530 mm
Projection: 410 mm
table height: 900 mm
table width: 104 mm
Y Fast speed: 200 mm/sec.
Y Working speed: 10 mm/sec.

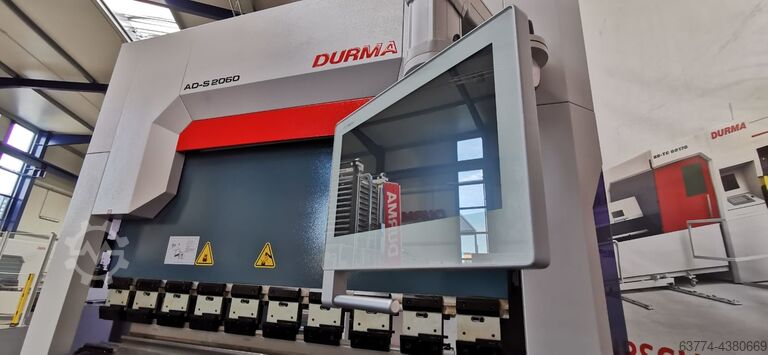

Control CYBELEC MODEVA 19T touch screen

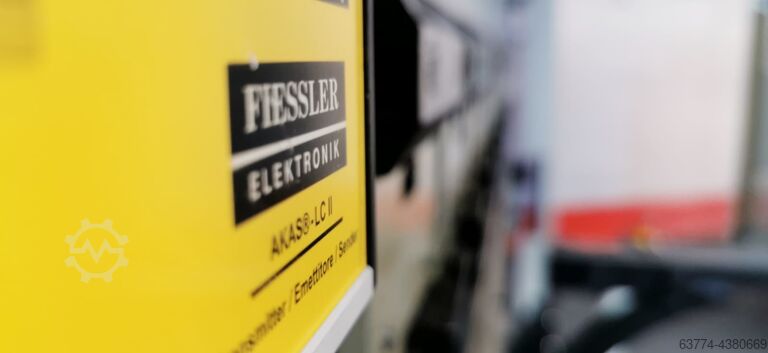

CE with manual F.AKAS II M -FPSC-B-C (SAFETY PLC)

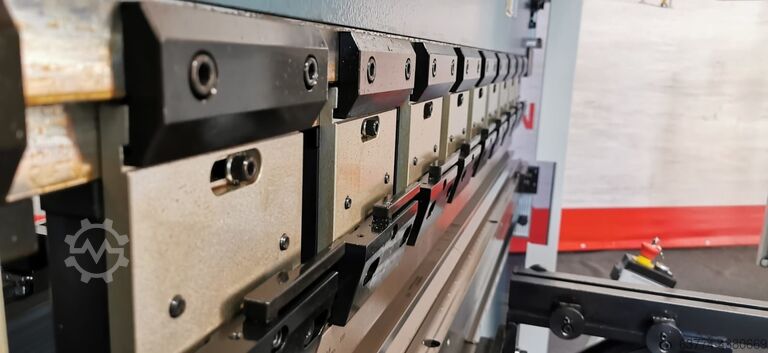

Europ. upper tool P97.75.R08 (one of them in pitch)
Europ. bottom tool M.460R.85 (one of them in pitch)
Manual quick clamping
Y1, Y2, X, R (4 axes) X=650mm X,R
CNC controlled motor-driven crowning
60mm die holder (only for european dies)
Overhang 410

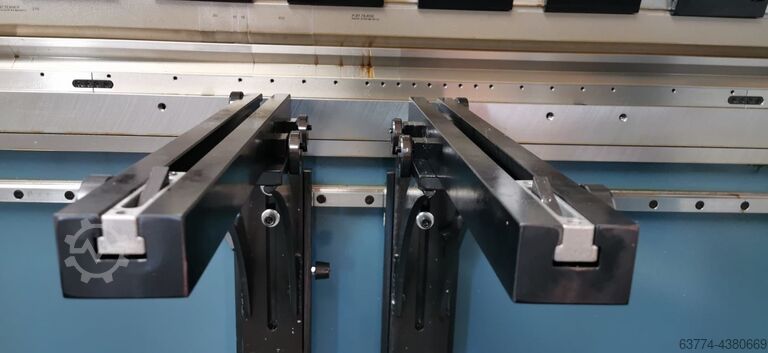

sliding support arms at the front with T-slot, clip stop and guide along the entire line
Backgauge : Siemens DC Servo motorized & linear guide & ball roller system
Support arms 2 pieces
Lsdpfxefgz U Ss Aliork

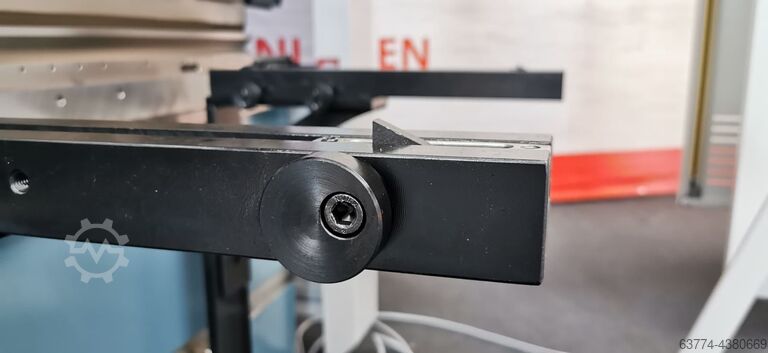

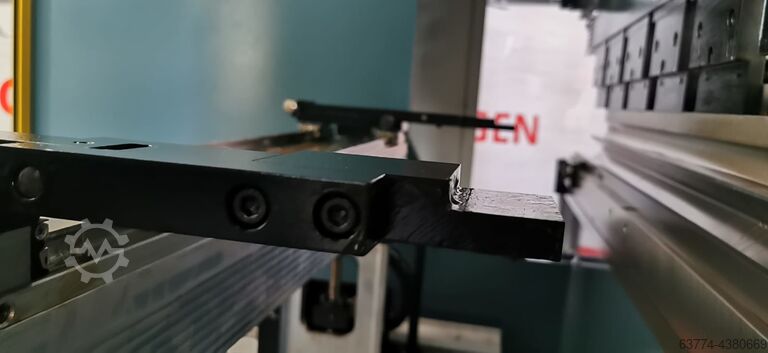

Stop finger 2 pieces
With foot pedal
Oil capacity: 100l
Price is valid from Staufenberg.
The machine can be viewed and demonstrated at any time by appointment in our demonstration centre in Staufenberg.
Further machines are ready for demonstration at our premises in Staufenberg.
We will be happy to provide you with further information on request.
آگهی به صورت خودکار ترجمه شده است. احتمال بروز اشتباه در ترجمه وجود دارد.
Weight: 3550 kg
Bending force: 60 tons
Bending length: 2050 mm
Passage between stands: 1700 mm
stroke: 265mm
Installation height: 530 mm
Projection: 410 mm
table height: 900 mm
table width: 104 mm
Y Fast speed: 200 mm/sec.
Y Working speed: 10 mm/sec.
Control CYBELEC MODEVA 19T touch screen
CE with manual F.AKAS II M -FPSC-B-C (SAFETY PLC)
Europ. upper tool P97.75.R08 (one of them in pitch)
Europ. bottom tool M.460R.85 (one of them in pitch)
Manual quick clamping
Y1, Y2, X, R (4 axes) X=650mm X,R
CNC controlled motor-driven crowning
60mm die holder (only for european dies)
Overhang 410
sliding support arms at the front with T-slot, clip stop and guide along the entire line
Backgauge : Siemens DC Servo motorized & linear guide & ball roller system
Support arms 2 pieces
Lsdpfxefgz U Ss Aliork
Stop finger 2 pieces
With foot pedal
Oil capacity: 100l
Price is valid from Staufenberg.
The machine can be viewed and demonstrated at any time by appointment in our demonstration centre in Staufenberg.
Further machines are ready for demonstration at our premises in Staufenberg.
We will be happy to provide you with further information on request.
آگهی به صورت خودکار ترجمه شده است. احتمال بروز اشتباه در ترجمه وجود دارد.
