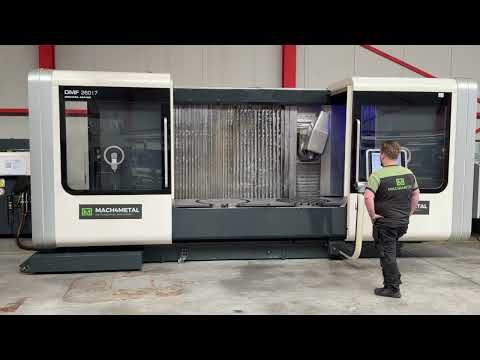

5-axis VMC DMG MORI DMF 260-7

DMG MORI DMF 260-7

5-axis CNC machine (VMC)
DMG MORI - DMF 260-7
MACH-ID 9609
Make: DMG MORI
Type: DMF 260-7
Control: HeidenHain iTNC530
Year: 2012
Pendel screen to split working area
C1 + C2 Duo (NC) Rotary table Ø 750 mm
Rotation speed table 50 Rpm indexing 360 Degrees
Psdpoy Hq Tnefx Aamogk
Paper filter with IKZ 40 Bar
Rapid feeds in all direction 20.000 mm/Min
Work load 8000 Kg
Spindel (cutting) hours 8295 H


X - Travel: 2600mm
Y - Travel: 700mm
Z - Travel: 700mm
A - Axis: 360000°
B - Axis: - 110 to + 110°
Table Length: 2900mm
Table Width: 750mm
Table load: 2150
Table Ø: 750mm
Feed rate X-Axis: 40000mm/min.
Feed rate Y-Axis: 40000mm/min.
Feed rate Z-Axis: 40000mm/min.
Spindle Taper: 40ISO/Bt/Mk
Power on spindle: 35kW
Speeds / ranges: 8000Rpm
ATC / revolver: 30
Coolant through spindle / Bar:20
Number of controlled axis: 5
Chip conveyor: Yes
Coolantsystem: Yes
Length: 8400mm
Width: 3423mm
Height: 2620mm
Weight: 16000kg
Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
