Sand making machine / stone crusher

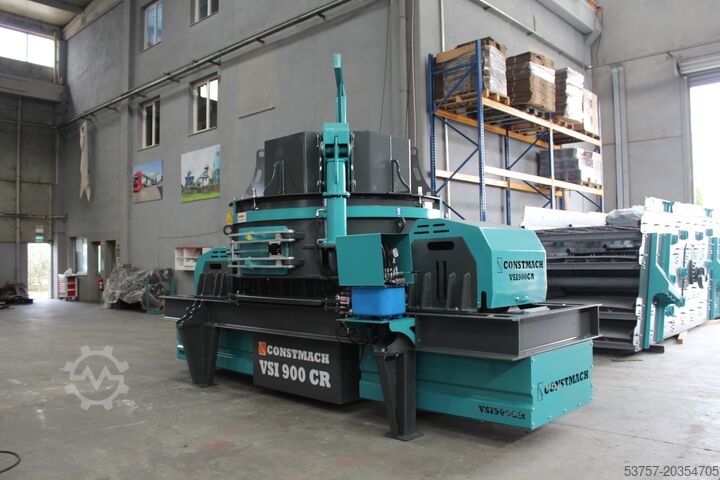

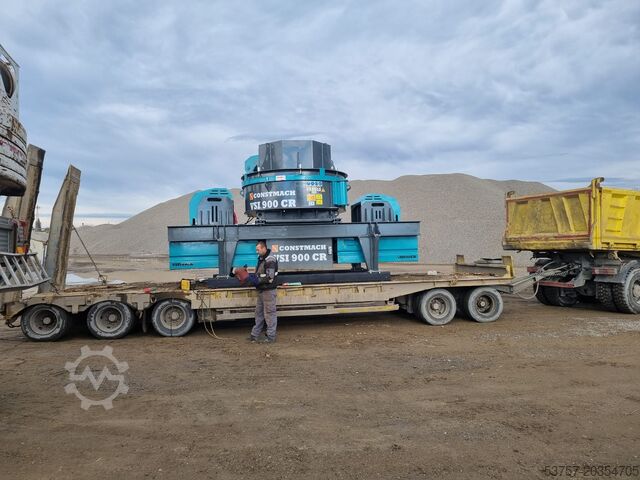

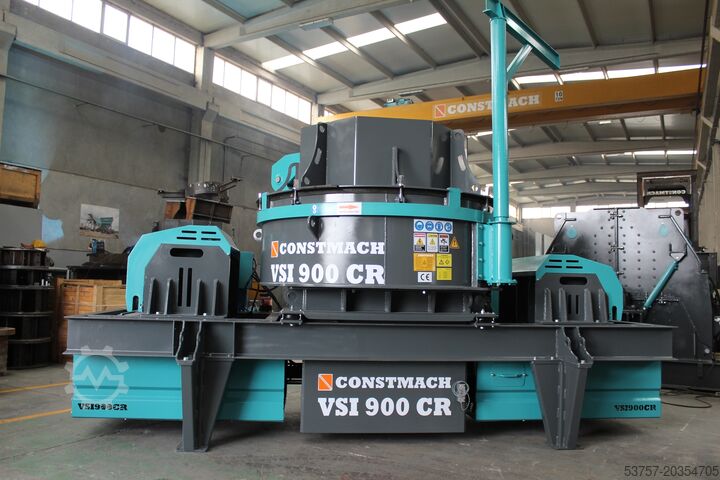

Constmach VSI Crusher VSI 900 Vertical shaft impact crusher

Vertical Shaft Impact Crushers (VSI) stand out among rock crushing machines due to their high crushing efficiency and excellent particle shape production. Developed by CONSTMACH, these sand-making machines are used in the tertiary crushing stage to give cubic form to materials obtained from secondary crushers and to produce a high proportion of fine material.

The system offers superior performance in processing all types of minerals and ores, as well as hard rocks such as basalt and granite. High-quality sand is produced from materials with a maximum feed size of 45 mm. Vertical shaft impact crushers allow you to easily obtain the desired product size for different material types thanks to their variable speed rotor system.

It offers production capacity flexibility with a high reduction ratio, large feed hopper, and four different crushing chambers. In addition, high-chromium wheel shoes, anvils, and heavy-duty bearings ensure long life and low maintenance costs. The independent lubrication system and optional anvil replacement mechanism maximize uptime.

Vertical Shaft Impact Crusher Technical Specifications

Model: VSI-700-CR
Maximum Feed Size: 35 mm
Weight: 6,500 kg
Motor Power: 110 kW
Rotor Diameter: Ø700 mm
Rotor Speed: 60–70 m/s
Production Capacity: 60–100 t/h

Model: VSI-800-CR
Maximum Feed Size: 40 mm
Crodpfx Aoxqgyvsg Ijk
Weight: 12,000 kg
Motor Power: 2 x 160 kW
Rotor Diameter: Ø800 mm
Rotor Speed: 45–60 m/s
Production Capacity: 150–200 t/h

Model: VSI-900-CR
Maximum Feed Size: 45 mm
Weight: 14,500 kg
Motor Power: 2 x 185 kW
Rotor Diameter: Ø900 mm
Rotor Speed: 50–60 m/s
Production Capacity: 200–250 t/h

Model: VSI-1000-OR
Maximum Feed Size: 90 mm
Weight: 15,000 kg
Motor Power: 2 x 200 kW
Rotor Diameter: Ø975 mm
Rotor Speed: 50–60 m/s
Production Capacity: 250–300 t/h

Why Choose CONSTMACH Vertical Shaft Impact Crushers?

CONSTMACH is a globally preferred brand in the production of stone crushing machines and sand making machines with its engineering quality. Our vertical shaft impact crushers offer high performance, low operating costs, and long-lasting use. Our models, which can be customized to the production needs of each facility, provide the advantages of easy maintenance and high efficiency. CONSTMACH is always the right choice for businesses seeking quality, reliability, and sustainable production.
