Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator
Brinox 9887

EXW VB به اضافه مالیات بر ارزش افزوده
‎€۱۹٬۵۰۰
سال ساخت
۲۰۲۱
وضعیت
کارکرده
موقعیت
Bremen آلمان
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator Brinox 9887
more Images
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
Brinox 9887
تصاویر نشان می‌دهند
نمایش نقشه

اطلاعات دستگاه

نام دستگاه:
Unused 87 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator
تولید کننده:
Brinox
مدل:
9887
سال ساخت:
۲۰۲۱
وضعیت:
کارکرده

قیمت و مکان

EXW VB به اضافه مالیات بر ارزش افزوده
‎€۱۹٬۵۰۰
موقعیت:
Bremen آلمان
تماس بگیرید

جزئیات فنی

ظرفیت مخزن:
۸۷ ل

جزئیات پیشنهاد

شناسه آگهی:
A20349195
شماره مرجع:
9887
به‌روزرسانی:
آخرین به‌روزرسانی در ۳۰.۰۷.۱۴۰۴

توضیحات

Location: Bremen
Condition: unused
Volume: 87 liters
Vacuum: 1.0 bar
Max. overpressure: 3.0 bar
Tank

Max. operating temperature tank / °C: 80°C

Top: bolted lid
Design: vertical
Tank

Mounting: mobile on castors
Number of supports: 4 pcs

Heating/Cooling: available
Double jacket volume: 7.0 liters
Max. permissible operating overpressure: 6.0 bar
Heating/Cooling Jacket

Max. permissible operating vacuum in double jacket / pipe space / bar: 1.0 bar

Max. allowable operating temperature: 100°C
Cylinder temperature control: double jacket
Insulation: available
Insulation

Insulation jacket: hermetically welded
Insulation material: mineral wool
Insulation jacket material: stainless steel

Inner diameter: 348 mm
Outer diameter: 470 mm
Total height: 1,800 mm
Technical Data / Dimensions

Ksdpsxqaknsfx Agnsnc
Wall thickness ends: 4 mm

Wall thickness cylinder: 4 mm
Year of manufacture: 2021
Technical documentation: drawing, various documents, inspection certificate, CE marking and Declaration of Conformity
Nameplate:

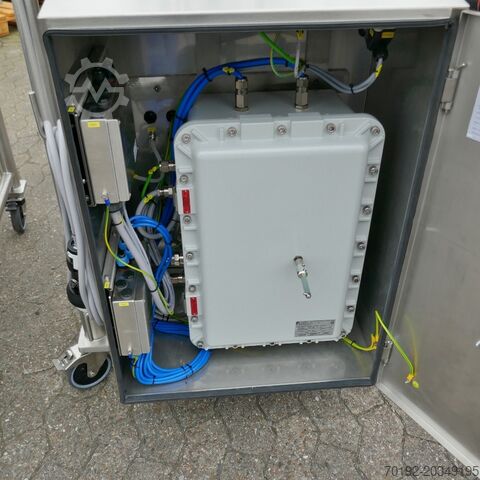

Equipment: spray head, control cabinet (without guarantee)
Equipment

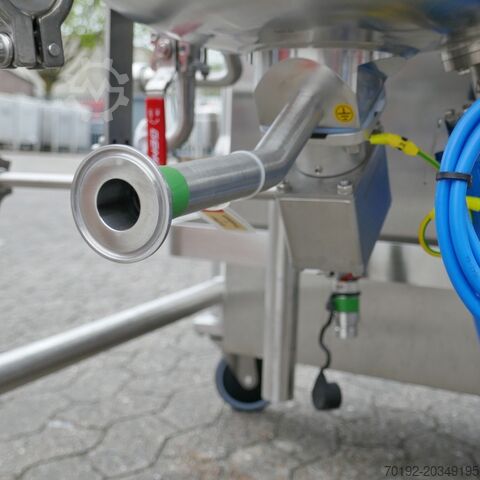

Outlet (alternative entry): 22 mm

Remarks: The tank was only tested for validation purposes
Product contact material: V4A 1.4401/04 (AISI316)
Material properties

Temperature control system material: V2A 1.4301 (AISI304)
Support material: stainless steel
Agitator

Agitator manufacturer: Zeta GmbH

Power: 0.09 kW
Speed: 125 - 1000 rpm
Agitator: magnetic stirrer
Agitator

Voltage: 230/400 Volt

Explosion protection: Motor is explosion-proof (compliance with applicable ATEX directives under local conditions must be checked)
Agitator

Agitator arrangement: bottom-mounted
