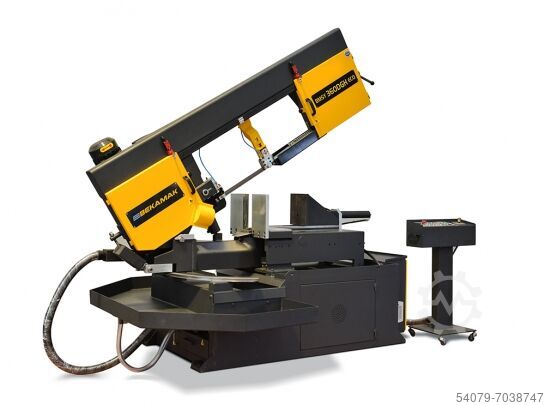

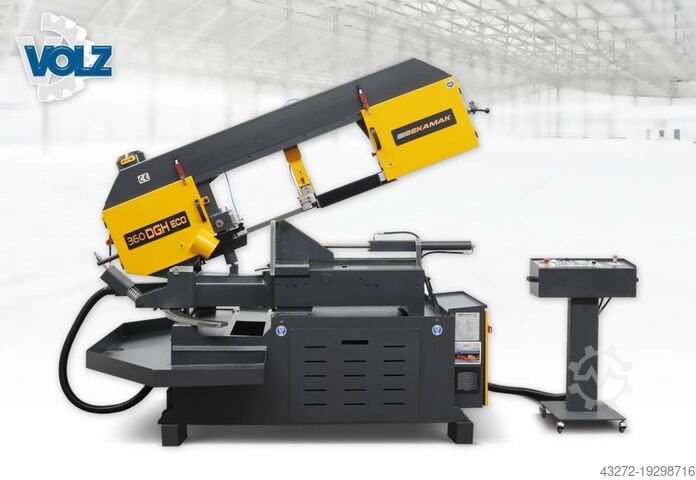

Band saw

BEKA-MAK BMSY-360DGH ECO

SPECIAL PRICE - ONLY FOR A SHORT TIME!!!

This machine works with a unique double-cylinder system in this class, which guarantees an enormous strength of the saw arm.
In addition, it has an extremely solid design and therefore meets the highest demands in steel construction. The design means that steel beams up to the maximum capacity (610 x 360 mm) can be sawn on both sides. The mitre adjustment is done effortlessly with one hand, the clamping is hydraulic.

The saw blade speed is infinitely variable from 15 - 120 meters / minute.
This makes the saw suitable for cutting both aluminum and tool steel.

The working height is 860 mm.

Technical data:

Cutting ranges:
90°
Hsdpeh A H E Nsfx Af Eoff
Round: 360 mm
Square: 360 mm
Rectangle: 510x360 mm

+ 45°
Round: 360 mm
Square: 360 mm
Rectangle: 440x360 mm

+ 30°
Round: 330 mm
Square: 300 mm
Rectangle: 300x360 mm

- 45°
Round: 360 mm
Square: 360 mm
Rectangle: 440 x 360 mm

- 30°
Round: 300 mm
Square: 300 mm
Rectangle: 300 x 300 mm

Motor effective power: 3.0 kW

Hydraulic motor: 0.55 kW

Coolant pump motor: 0.12 kW

Saw blade dimensions: 4800 x 34.0 x 1.1 mm

Belt speed: 15 to 120 m / min infinitely variable

Standard accessories:
- miter adjustment on both sides up to 30° each
- Hydraulic clamping of the miter adjustment
- Mitre angle digitally readable on mobile control panel
- Coolant system with coolant flushing of the saw blade in front of the blade guides
- Infinitely variable adjustment of the band speed
- Saw blade tension monitoring
- User-friendly control panel
- Hydraulic clamping vice
- hydraulic unit
- Rotating chip brush
- manual, hydro-mechanical saw blade tensioning
- German operating instructions, spare parts list, electrical diagram, hydraulic diagram
- Two-tone paint finish: dark gray RAL 7021, yellow RAL 1003
- CE conformity
- Micro-Cool cooling spray device complete with universal spray head
