Press Brakes

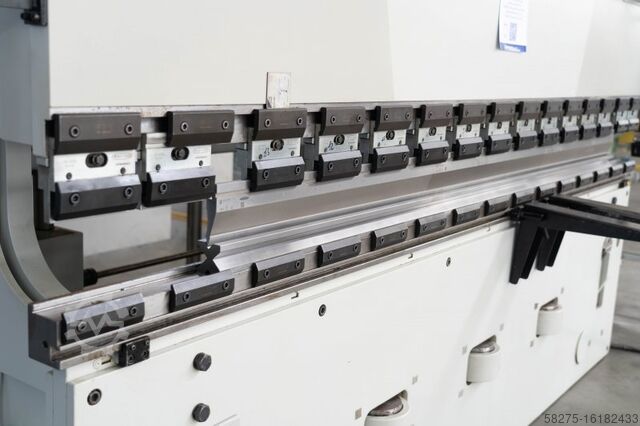

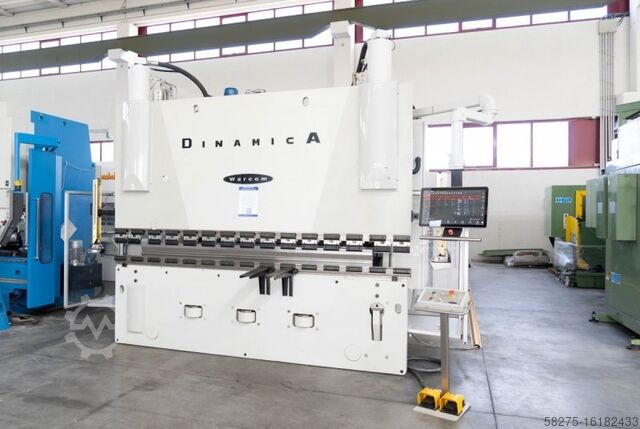

WARCOM DINAMICA 100-30

- USED - 6-AXIS SYNCHRONIZED CNC PRESS BRAKE WITH HYDRAULIC CROWNING
AXIS: Y1 - Y2 - X - R - Z1 - Z2
BENDING LENGTH: 3200 mm
TONNAGE: 100 ton
THROAT DEPTH: 500 mm
DISTANCE BETWEEN UPRIGHTS: 2550 mm
OPEN HEIGHT: 600 mm
UPPER BEAM TRAVEL: 400 mm
X-AXIS TRAVEL: 800 mm
R-AXIS TRAVEL: 150 mm
APPROACH SPEED: 200 mm/sec
RETURN SPEED: 180 mm/sec
WORKING SPEED: 10 mm/sec
MOTOR POWER: 11 kW
CONTROL UNIT: ESA 875 PLUS
WEIGHT: 10500 Kg
OVERALL DIMENSIONS: 4300 x 2000 x 3100 mm
NOTE: MACHINE EQUIPPED WITH NEW CNC ESA
