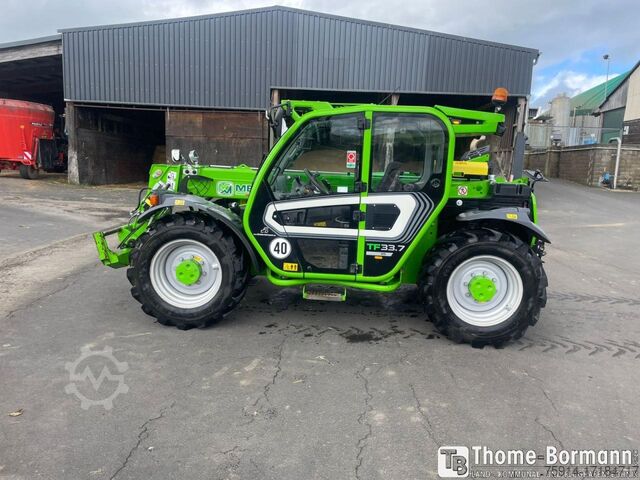

Merlo TF 33.7-115

Operating hours: 2277, First registration: 24.05.2022

Year of manufacture: 2022
Approx. operating hours: 2200
Max. lifting capacity: 3,300 kg
Max. lifting height: 6,600 mm
Max. outreach: 3,500 mm
Length to attachment carrier: 4,310 mm
Godpsupq Tqefx Aiwjbl
Width: 2,100 mm
Height: 2,120 mm
Total weight with forks: 6,500 kg
Total weight without forks: 6,330 kg
Engine: 4-cylinder Deutz TCD 3.6
Displacement: 3.6 l, Water-cooled
Output: 85 kW (115 hp)
2,300 rpm
Stage V
Diesel particulate filter, oxidation catalyst, and SCR catalyst with AdBlue injection (DPF + DOC + SCR)
Hydrostatic drive pump: electronically controlled with variable flow rate
Engine: variable displacement motor
EPD TOP incl. with optional automatic rpm increase
Mineral hydraulic oil HVI 46
Transmission: 2-speed, electrohydraulically controlled
Vmax = 1st gear / 2nd gear = 16 / 20 km/h, optional 40 km/h
Cab: enclosed cab, split door, 360° all-round visibility
GRAMMER air-suspended seat with lap belt
ROPS/FOPS certified
Heater
Front, roof, and rear windscreen wipers
Sun blind
4x1 joystick, electronically controlled with capacitive enable, incl. direction control switch
Telescopic boom, 2-stage with electronic end-position cushioning (Soft Stop)
Attachment carrier quick-coupler system type "ZM2", hydraulically controlled from the cab
Steering: hydraulic steering, 3 steering modes: all-wheel, front-wheel, crab steer
Drive: permanent all-wheel drive
Axles: front axle fixed, rear axle oscillating
Braking system: servo-assisted disc brakes on all four drive shafts; automatically applied parking brake when engine stops
Hydraulic system: variable displacement pump, "LOAD SENSING" type
Work hydraulics flow rate: 125 l/min
Hydraulic fan flow rate: 46 l/min
Total flow rate: 171 l/min
Working pressure: 210 bar
Flow-sharing control block
Electrics: 12 V, 100 Ah battery, 120A alternator
Stabilisation control: simplified Merlo ASCS system (ASCS-light) with fully electronic stability control, audiovisual warning, attachment recognition, and overload cut-off
Special equipment:
Tyres: 400/70-24 158A8
Rear hydraulic connection with separate control
EU approval as tractor/agricultural tractor, 40 km/h
Tow hitch, height adjustable, self-locking, 30/32 mm pin, incl. trailer lighting connection
Air conditioning
Boom suspension (B.S.S.)
LED beacon on cab roof (approval responsibility of the customer!)
LED work lights on cab (2 front, 2 rear) instead of standard halogen headlights
2 work lights at the end of the first arm (main boom)
ASCS upgrade: Monitor with all ASCS functions + continuous flow at the front
Location: Raiba Üttfeld
