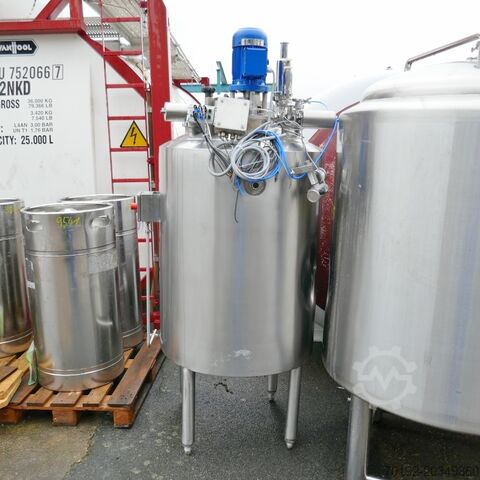

530 litre heatable/coolable pressure vessel made of V4A with propeller agitator.

9570

GENERAL
Features: Spray head
Design: upright
Ledsxqaquepfx Afhsrg
Remarks: Original drawing available; vessel was modified in 1997 (e.g. change of feet and/or connections); documentation of subsequent pressure test available; modification drawing only available as fax; 1 dip tube inside the vessel
Speed: 670 rpm
External diameter: 900 mm
Internal diameter: 800 mm
Total height: 2,250 mm
Heating/Cooling: available
Insulation: available
Power: 0.55 kW
Max. permissible operating temperature: 143 °C
Max. permissible operating overpressure: 3.0 bar
Max. overpressure: 3.0 bar
Agitator: propeller

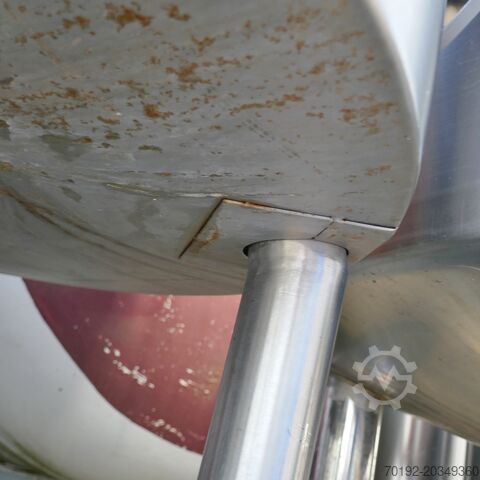

Base type: feet, height-adjustable
Location: Bremen
Technical documentation: drawing, TÜV papers
Jacketed cylinder: double jacket

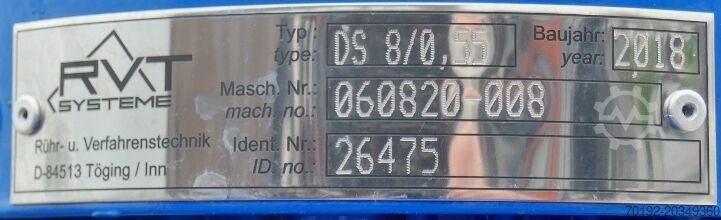

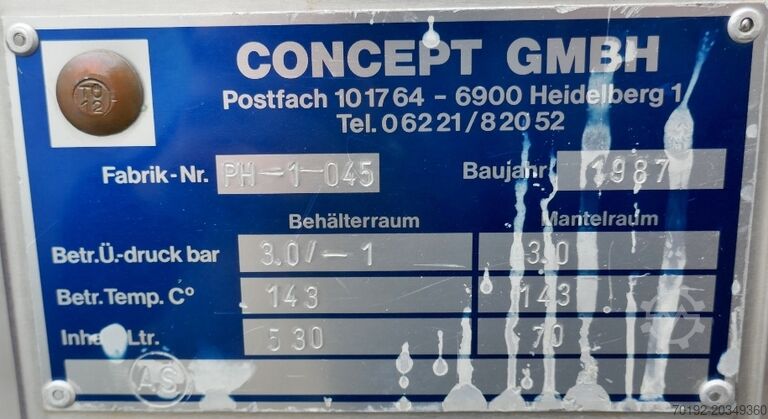

Name plate:
Vacuum: 1.0 bar
Volume: 530 liters
Double jacket volume: 70.0 liters
Cylinder wall thickness: 5 mm
Product-contact material: V4A 1.4571 (AISI316)
Condition: used
Cylindrical height: 900 mm
Previous application: pharmaceuticals

VESSEL
Max. permissible operating temperature: 143 °C
Number of feet: 4

HEATING/COOLING JACKET
Base temperature control: double jacket

INSULATION
Insulation jacket: welded
Insulation jacket material: stainless steel

EQUIPMENT
Manway / dome: on upper head (DN 400)
Outlet: DN80 DIN 11851
Remark: minor residues inside

MATERIAL SPECIFICATION
Jacket material (temperature control system): V2A 1.4301 (AISI304)
Feet material: stainless steel

AGITATOR 1
Voltage: 230/400 volts

TECHNICAL DATA / DIMENSIONS
Bottom wall thickness: 5 mm
Agitator positioning: eccentric, in upper head
