Machining center

Hartford VMC 3100 SUMO

- Hartford VMC 3100 SUMO
- Mitsubishi M730 control system with Hartrol and handwheel
- Year of construction 2014
- Effective machining time as of 30.09.24 = 4600 hours.
- Travel X3050 x Y1016 x Z1070mm
- Toothed belt spindle with 8,000 rpm. For roughing work, the belt pulleys can be exchanged to provide more power for large tools.
- BT-50 spindle
Lodpfjuyk Dlox Agnoah
- Tool magazine with 32 pockets
- Flat guides in all axes
- The cross table rests on 6 flat guides and has a max. Table load of 4,000 kg.
- Machine weight 25 tons.
- Rapid traverse up to 10,000mm/min
- Milling feed up to 7,000mm/min
- Chip conveyor
- IKZ with 15bar and 34l/min
- External cooling lubricant
- Compressed air outside
- Bed flushing
- Spindle cooler
- Machine size L=8 x W=5 x H=4.5 meters
OPTIONS:

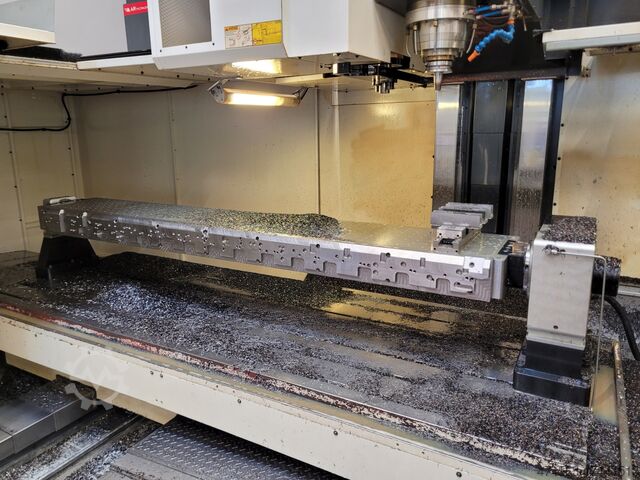

o A 4th axis with braked counter bearing from PLehmann and a swivel bridge is currently installed.
o A good 100 tool holders are available.
o Extraction system for cooling lubricant mist.
o Machine model for CAM.
o Postprocessor for TopSolid7-CAM.
