Machining Center - Horizontal

HÜLLER HILLE NBH 170

x-travel 1000 mm
y-travel 800 mm
z-travel 800 mm
control SIN840D
speeds 10 - 10.000 U/min
feed range 1 - 36000 mm/min
B - axis 360 x 1 °
repeating accuracy + / - 3 "
surface area 2 x 500 x 630 mm
tool diameter 100 mm
workpiece length 650 mm
workpiece weight max. 40 kg
tool taper DIN 69871 SK 50
workpiece weight 800 kg
tool magacine with 100 Plätzen
Nodpewhqtkjfx Al Njwn
wotkpiece diameter with 2 vacant positions 325 mm
Chip to chip time ca. 8,00 sec.
change time of pallets ca. 12,00 sec
total power requirement 65,00 kW
weight of the machine ca. 20,00 t
dimensions of the machine ca. 7,80 x 3,50 x H3,40 m
Horizontal machining center with SIEMENS SIN840D control.
NC-rotary table; chip conveyor; coolant-unit; coolant through the spindle

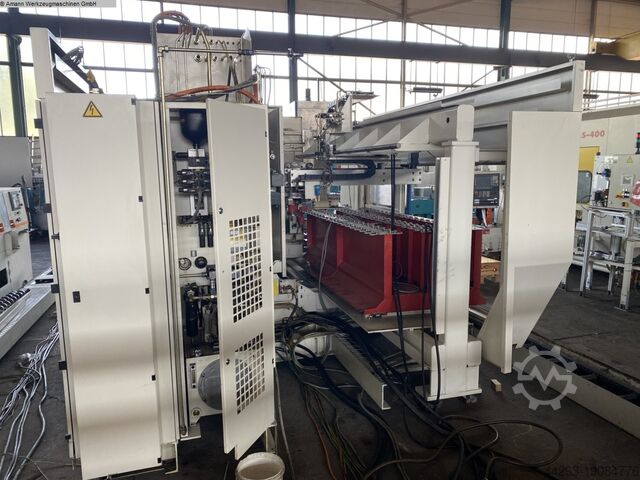

Magazine with 2 cassette à 50 pockets.
