Automatic lathe

Gildemeister Speed 12-7 Linear

Manufacturer: DMG Gildemaster
Country of manufacture: Italy
CNC control FANUC 16i-TB with 7 axes
CE declaration of conformity
Technical data
- Number of axes: 7
- Number of spindles: 2
Travel paths:
X1 axis: ±30 mm
Z1 axis: 120 mm
Y1 axis: 195 mm
Iodpsvvx H Nsfx Afzotp
X2 axis: 30 mm
Z2 axis: 180 mm
MAIN SPINDLE
- Max. bar diameter: 12 (13) [mm]
- Travel path: 120 [mm]
- Spindle speed: 12000 [rpm]
- Spindle drive power: 3.7 [kW]
- Torque: 6Nm

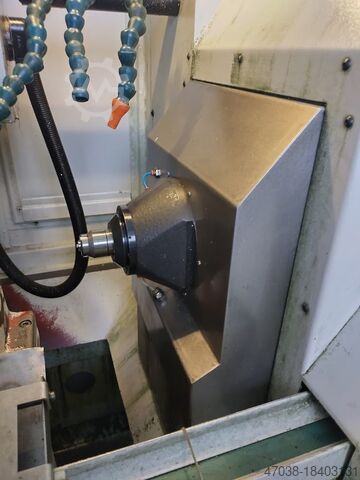

COUNTER SPINDLE
- Max. bar diameter: 12 (13) [mm]
- Spindle speed: 12000 [rpm]
- Spindle drive power: 3.7 [kW]
- Torque: 6Nm

Driven tools:
Power of the tool drives: 1.1 kW
Max. speed: 6,000 rpm

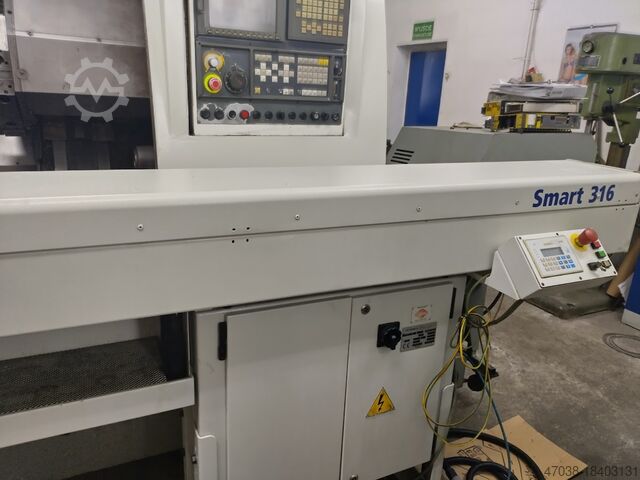

Bar loading magazine IEMCA SMART 316
Chip conveyor

Machine dimensions: approx. 2043 x 1200 x 1750 [mm]
Machine weight: approx. 2200 [kg]
Spindle, counter spindle with new bearings!
