DMG MORI CMX 1100 V

DMG MORI CMX 1100 V

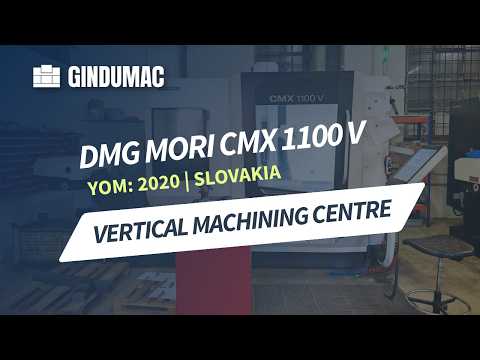

This 3-axis DMG MORI CMX 1100 V was manufactured in 2020. It features an X-axis travel of 1100 mm, Y-axis travel of 560 mm, and Z-axis travel of 510 mm. The machine includes a clamping area of 1400 x 560 mm and a maximum table load of 1000 kg. If you are looking to get high-quality machining capabilities, consider the DMG MORI CMX 1100 V vertical machining centre we have for sale. Contact us for further details.

• Distance spindle nose to table: 120–630 mm
• Clamping area: 1400 x 560 mm
• Spindle power: 13 kW (40% DC) / 9 kW (100% DC)
• Spindle torque: 83 Nm (40% DC) / 57 Nm (100% DC)
• Tool magazine: 30 pockets (double gripper, loaded through spindle, programmed via control panel)
• Max. tool diameter: 80 mm (130 mm with free adjacent pockets)
• Max. tool length: 300 mm (from spindle face)
• Max. magazine load: 120 kg
• Feed drives: AC drives with ball screws
Fodpozibzxjfx Aihopk
• Feed rate (X/Y/Z): 30 m/min
• Rapid traverse (X/Y/Z): 30 m/min

Additional equipment

• Renishaw tool probe
• Renishaw workpiece probe
• Clamps/workholding set

Technical Specification
Taper Size SK 40
